The W25Q256JVEIQ is a 256Mbit NOR flash memory chip from Winbond, offering high-speed Quad SPI interface at 133 MHz, low power consumption, and a compact 8-pin WSON package. It’s ideal for applications requiring substantial storage capacity in space-constrained environments.
How Does the W25Q256JVEIQ Enhance Performance?
The W25Q256JVEIQ operates at a clock frequency of 133 MHz, enabling rapid data access and execution. Its Quad SPI interface allows for simultaneous data transfer on four lines, significantly improving throughput compared to standard SPI interfaces.
What Are the Key Features of the W25Q256JVEIQ?
-
Memory Size: 256Mbit
-
Interface: Quad SPI
-
Clock Frequency: Up to 133 MHz
-
Voltage Range: 2.7V to 3.6V
-
Package Type: 8-pin WSON
-
Sector Size: Uniform 4KB
-
Operating Temperature: -40°C to 85°
Which Applications Benefit from the W25Q256JVEIQ?
The W25Q256JVEIQ is well-suited for applications such as:
-
Embedded Systems: Storing firmware and configuration data.
-
Consumer Electronics: Providing storage for audio, video, and other media.
-
Networking Devices: Holding boot code and system configurations.
-
Automotive Systems: Storing control software and diagnostics.
Why Is the W25Q256JVEIQ a Reliable Choice?
Winbond’s W25Q256JVEIQ offers high endurance with support for over 100,000 program/erase cycles and a data retention period of 20 years. Its low power consumption ensures efficient operation in battery-powered devices.
Where Can You Purchase the W25Q256JVEIQ?
The W25Q256JVEIQ is available from various electronic component distributors, including:
-
Mouser Electronics: Offers detailed product specifications and datasheets.
-
Digi-Key Electronics: Provides comprehensive technical resources and purchasing options.
-
RS Components: Stocks the component with global shipping options.
Buying Tips
When purchasing the W25Q256JVEIQ, consider the following:
-
Verify Package Type: Ensure the package type (e.g., WSON) matches your design requirements.
-
Check Voltage Compatibility: Confirm the operating voltage range aligns with your system’s specifications.
-
Assess Temperature Range: Choose a part with an appropriate operating temperature range for your application.
-
Review Endurance and Retention: Select a part with sufficient program/erase cycles and data retention for your needs.
Fly-Wing Technology (HK) Co., Limited offers a reliable source for hard-to-find parts, providing new and original components at competitive prices. With warehouses in Hong Kong and a global supplier network, they ensure quick procurement cycles and quality assurance.
Electronic Components Expert Views
“The W25Q256JVEIQ stands out for its high-speed performance and low power consumption, making it ideal for modern embedded applications,” says an industry expert. “Its compact package and high endurance further enhance its suitability for space-constrained and mission-critical systems.”
FAQ
Q: What is the maximum clock frequency of the W25Q256JVEIQ?
A: The W25Q256JVEIQ supports a maximum clock frequency of 133 MHz.
Q: What is the operating voltage range for the W25Q256JVEIQ?
A: The operating voltage range is 2.7V to 3.6V.
Q: How many program/erase cycles does the W25Q256JVEIQ support?
A: The W25Q256JVEIQ supports over 100,000 program/erase cycles.
Q: What is the data retention period for the W25Q256JVEIQ?
A: The data retention period is 20 years.
Q: Where can I purchase the W25Q256JVEIQ?
A: The W25Q256JVEIQ is available from distributors such as Mouser Electronics, Digi-Key Electronics, and RS Components.
In the fields of embedded systems and industrial control, high-performance and high-capacity storage solutions have always been a focus for engineers. Today, we will introduce a high-performance serial flash memory chip from Winbond Electronics – the W25Q256JVEIQ.
I. Overview of the Chip
The W25Q256JVEIQ is a 256Mbit (32MB) Serial NOR Flash memory, designed for applications that require high performance, low power consumption, and high reliability. It supports the standard SPI interface as well as Dual/Quad SPI, which significantly enhances data transfer efficiency.
II. Key Features
1. High Performance
- Capacity: 256Mbit (32MB), supporting 4KB sector and 32KB block erase.
- Clock Frequency: Supports up to 133MHz SPI clock frequency, with equivalent frequencies of 266MHz in Dual SPI mode and 532MHz in Quad SPI mode.
- Data Transfer Rate: Achieves a maximum continuous data transfer rate of up to 66MB/s.
2. Flexibility
- Sector and Block Management: Supports 4KB sector, 32KB block, and 64KB block erase, providing flexible data storage and management.
- Address Mode: Supports both 3-byte and 4-byte address modes, enabling storage expansion up to 32Gbit.
3. Low Power Consumption
- Operating Voltage: 2.7V to 3.6V.
- Standby Current: As low as 1μA, making it suitable for low-power applications.
4. High Reliability
- Data Protection: Supports software and hardware write protection, offering advanced security features.
- Endurance: Each sector supports up to 100,000 erase/write cycles.
- Data Retention: Over 20 years of data retention.
5. Packaging and Pinouts
- Package Options: Available in multiple packages, including 8-pin WSON (8x6mm), 16-pin SOIC (300mil), and 24-pin TFBGA (8x6mm).
- Pin Functions: Supports standard SPI and Dual/Quad SPI interfaces.
III. Applications
With its high performance, low power consumption, and high reliability, the W25Q256JVEIQ is widely used in the following areas:
- Embedded Systems: For storing firmware and critical data.
- Industrial Control: Performs excellently in applications requiring fast read/write and high reliability.
- IoT Devices: Suitable for smart devices that require compact packaging and low power consumption.
- Automotive Electronics: Supports a wide temperature range (-40°C to +85°C), making it suitable for automotive applications.

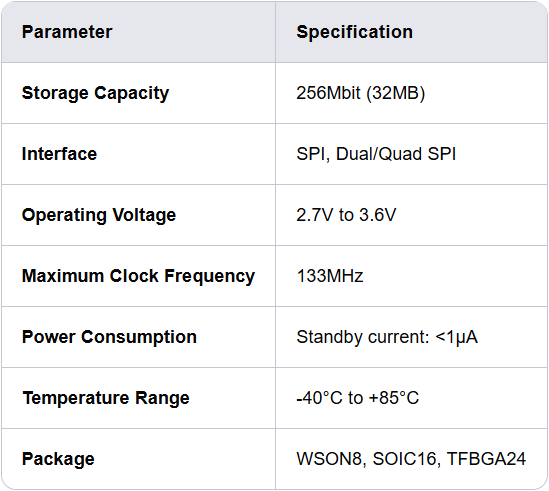

IV. Technical Specifications
V. Conclusion
The W25Q256JVEIQ is a high-performance, high-capacity serial NOR flash memory suitable for a wide range of applications. Its support for Dual/Quad SPI interfaces, flexible storage management, low power consumption, and high reliability make it an ideal choice for embedded systems and industrial control.
