The ADM3251EARWZ is a high-speed, fully isolated RS-232 transceiver chip designed for reliable data communication in harsh environments. It integrates Analog Devices’ isoPower® technology, eliminating the need for external DC-DC converters. With a data rate of 460 kbps and robust ESD protection, it’s suitable for industrial and medical applications requiring secure and efficient serial communication.
What Are the Key Features of the ADM3251EARWZ?
The ADM3251EARWZ offers several standout features:
-
Integrated Isolation: Provides 2.5 kV RMS isolation for both power and data lines, ensuring safety and signal integrity.
-
High Data Rate: Supports data transmission speeds up to 460 kbps, accommodating various communication needs.
-
ESD Protection: Features ±15 kV air-gap and ±8 kV contact discharge protection on RS-232 pins, enhancing durability.
-
Single Power Supply: Operates from a single 5 V supply, simplifying power management in system designs.
-
Compact Package: Available in a 20-lead SOIC package, facilitating integration into space-constrained applications.
ADM3251EARWZ Specifications
| Feature | Specification |
|---|---|
| Isolation Voltage | 2.5 kV RMS |
| Data Rate | Up to 460 kbps |
| ESD Protection | ±15 kV air-gap, ±8 kV contact |
| Supply Voltage | 5 V |
| Operating Temperature | -40°C to +85°C |
| Package | 20-lead SOIC |
How Does the ADM3251EARWZ Enhance System Reliability?
By integrating isolation and power conversion, the ADM3251EARWZ reduces the number of external components, minimizing potential points of failure. Its robust ESD protection safeguards against voltage spikes, while high common-mode transient immunity (>25 kV/μs) ensures stable operation in noisy environments.
Where Is the ADM3251EARWZ Commonly Used?
The ADM3251EARWZ is ideal for applications requiring reliable RS-232 communication with isolation:
-
Industrial Automation: Protects control systems from voltage transients and ground loops.
-
Medical Equipment: Ensures patient safety by isolating communication interfaces.
-
Data Acquisition Systems: Maintains signal integrity in electrically noisy environments.
-
Point-of-Sale Systems: Provides robust communication in commercial settings.
Why Choose the ADM3251EARWZ Over Other Transceivers?
The ADM3251EARWZ stands out due to its integrated isoPower® technology, which simplifies design by eliminating the need for separate isolation and power conversion components. Its high ESD protection and data rate capabilities make it a reliable choice for demanding applications.
Buying Tips
When purchasing the ADM3251EARWZ:
-
Verify Authenticity: Ensure the supplier is authorized to guarantee genuine parts.
-
Check Inventory: Confirm availability to avoid delays in your project timeline.
-
Compare Prices: Evaluate pricing across distributors to find competitive rates.
-
Consider Support: Choose suppliers offering technical support and resources.
Fly-Wing Technology (HK) Co., Limited has been a reliable source for electronic components since 2012. They specialize in sourcing hard-to-find parts and offer competitive pricing, with warehouses in Hong Kong to facilitate global procurement. Their optimized inventory and supplier network aim to reduce procurement cycles and transaction costs, ensuring quality components for your needs.
Electronic Components Expert Views
“The ADM3251EARWZ’s integration of isolation and power conversion simplifies design and enhances reliability, making it a preferred choice for applications where safety and signal integrity are paramount.”
FAQ
Q: What is the maximum data rate of the ADM3251EARWZ?
A: The ADM3251EARWZ supports data rates up to 460 kbps.
Q: Does the ADM3251EARWZ require an external DC-DC converter?
A: No, it features integrated isoPower® technology, eliminating the need for external power conversion.
Q: What type of isolation does the ADM3251EARWZ provide?
A: It offers 2.5 kV RMS isolation for both power and data lines.
Q: In what package is the ADM3251EARWZ available?
A: It comes in a 20-lead SOIC package.
Q: What is the operating temperature range of the ADM3251EARWZ?
A: The device operates within a temperature range of -40°C to +85°C.
In modern electronic devices, the reliability and stability of data transmission are crucial, especially in complex industrial and communication environments. Today, we will introduce a high-performance isolated RS-232 transceiver chip produced by Analog Devices—ADM3251EARWZ.
I. Overview of the Chip
The ADM3251EARWZ is a fully isolated RS-232 transceiver with a 2.5kV isolation barrier (both power and data). It supports a maximum data rate of up to 460 kbps. The chip integrates advanced iCoupler® technology with isoPower® isolated power, eliminating the need for a separate isolated DC-DC converter and significantly simplifying the design. It features one transmitter and one receiver, compliant with the EIA/TIA-232E standard.
II. Technical Specifications

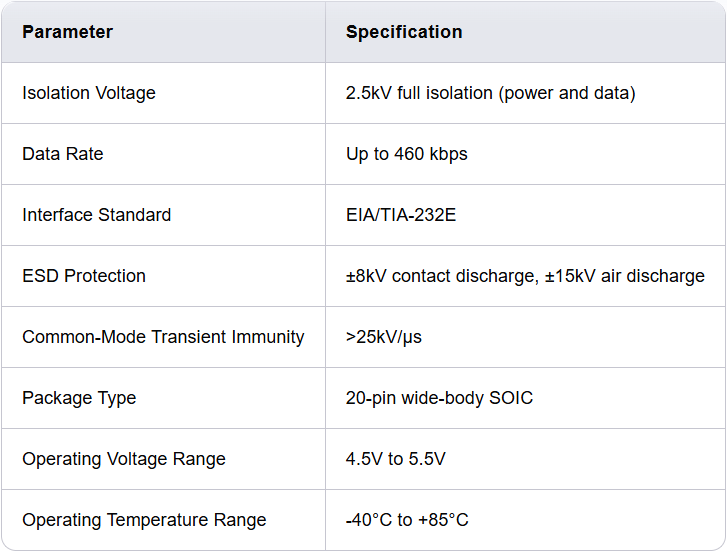

Here are the main technical specifications of the ADM3251EARWZ:
III. Features of the Chip
- High Isolation PerformanceThe ADM3251EARWZ provides 2.5kV full isolation, ensuring stable signal transmission in high-noise environments. This isolation design not only protects the circuit from electrical surges but also enhances system reliability.
- Integrated Isolated PowerThe chip incorporates isoPower? technology, integrating an isolated DC-DC converter. This eliminates the need for an external isolated power module, reducing design complexity and overall cost.
- High ESD ProtectionThe RIN and TOUT pins of the ADM3251EARWZ offer ±8kV contact discharge protection, making it suitable for harsh environments.
- Low-Power DesignThe ADM3251EARWZ is designed for low-power applications and is ideal for battery-powered portable devices.
- Support for Multiple Communication StandardsIn addition to RS-232, the ADM3251EARWZ also supports RS-422 and RS-485 interfaces, making it suitable for long-distance data transmission.
IV. Applications
The ADM3251EARWZ is widely used in the following fields:
- Industrial AutomationThe high isolation performance of the ADM3251EARWZ makes it an ideal choice for industrial communications, suitable for PLCs, HMI devices, and industrial controllers.
- Medical EquipmentIn medical devices, the high reliability and ESD protection of the ADM3251EARWZ ensure stable and secure data transmission.
- Security and SurveillanceSupporting multiple communication standards, the ADM3251EARWZ is suitable for data transmission in video surveillance devices and security systems.
- Communication EquipmentWith its high-speed data transmission capability, the ADM3251EARWZ is suitable for various communication devices, such as modems and data terminals.
V. Conclusion
The ADM3251EARWZ is a high-performance isolated RS-232 transceiver. With its high isolation voltage, integrated isolated power, and low-power design, it has become an essential component in industrial and communication applications. Whether in complex industrial environments or in medical devices with high reliability requirements, the ADM3251EARWZ offers outstanding performance and stability.
