The EPCQ64ASI16N is a high-performance serial configuration memory chip from Intel, designed to provide non-volatile storage solutions for FPGA configurations. With a 64 Mb capacity and a 16-pin SOIC package, it offers fast read speeds and low power consumption, making it ideal for embedded systems requiring reliable and efficient configuration storage.
What Are the Key Features of the EPCQ64ASI16N Chip?
The EPCQ64ASI16N chip boasts several notable features:
-
High Capacity: 64 megabits of storage to accommodate large FPGA configurations.
-
Fast Read Speeds: Supports high-speed data retrieval for quick FPGA initialization.
-
Low Power Consumption: Designed to operate efficiently, reducing overall system power requirements.
-
Small Form Factor: 16-pin SOIC package suitable for compact embedded designs.
-
Security Features: Includes options for secure data storage to protect intellectual property.
How Does the EPCQ64ASI16N Chip Operate?
The EPCQ64ASI16N utilizes a serial peripheral interface (SPI) to communicate with the FPGA. Upon power-up, the FPGA retrieves its configuration data from the EPCQ64ASI16N, enabling it to function as intended. The chip’s fast read speeds ensure that the FPGA initialization process is swift, minimizing system boot times.
Why Is the EPCQ64ASI16N Chip Preferred for FPGA Configuration?
The EPCQ64ASI16N chip is favored for FPGA configuration due to its combination of high storage capacity, fast read speeds, and low power consumption. Its small form factor allows for integration into space-constrained designs, while its security features help protect sensitive configuration data.
Where Can the EPCQ64ASI16N Chip Be Used?
The EPCQ64ASI16N chip is suitable for various applications, including:
-
Embedded Systems: Providing configuration storage for embedded FPGAs.
-
Consumer Electronics: Enabling FPGA-based functionalities in consumer devices.
-
Industrial Automation: Storing FPGA configurations for automation equipment.
-
Telecommunications: Supporting FPGA configurations in communication infrastructure.
How Does the EPCQ64ASI16N Chip Compare to Other Configuration Memories?
Compared to other configuration memories, the EPCQ64ASI16N offers:
-
Higher Storage Capacity: 64 Mb storage allows for larger FPGA configurations.
-
Faster Read Speeds: Ensures quick FPGA initialization.
-
Lower Power Consumption: Reduces overall system power requirements.
-
Compact Size: The 16-pin SOIC package is ideal for space-constrained applications.
These advantages make the EPCQ64ASI16N a preferred choice for FPGA configuration storage in various applications.
Buying Tips
When purchasing the EPCQ64ASI16N chip or similar configuration memory devices, consider the following:
-
Compatibility: Ensure the chip is compatible with your FPGA’s configuration interface.
-
Capacity: Choose a chip with sufficient storage capacity for your FPGA’s configuration data.
-
Speed: Opt for a chip with fast read speeds to minimize FPGA initialization time.
-
Power Consumption: Select a chip with low power consumption to enhance system efficiency.
-
Security Features: Consider chips with built-in security features to protect your configuration data.
Fly-Wing Technology (HK) Co., Limited offers a wide range of electronic components, including the EPCQ64ASI16N chip, with competitive pricing and reliable sourcing solutions.
Electronic Components Expert Views
“The EPCQ64ASI16N chip’s combination of high storage capacity, fast read speeds, and low power consumption make it an excellent choice for FPGA configuration storage in embedded systems.”
“Selecting the right configuration memory is crucial for optimal FPGA performance; the EPCQ64ASI16N offers a balanced mix of features to meet various application needs.”
FAQ
Q: Can the EPCQ64ASI16N chip be used with all FPGA models?
A: The EPCQ64ASI16N chip is compatible with FPGAs that support SPI-based configuration; however, it’s essential to verify compatibility with your specific FPGA model.
Q: What is the maximum read speed of the EPCQ64ASI16N chip?
A: The EPCQ64ASI16N chip supports high-speed read operations, but the exact maximum read speed may vary depending on the specific implementation and system configuration.
Q: Does the EPCQ64ASI16N chip support secure data storage?
A: Yes, the EPCQ64ASI16N chip includes security features to protect configuration data, ensuring the integrity and confidentiality of your FPGA’s configuration.
Q: How do I interface the EPCQ64ASI16N chip with my FPGA?
A: The EPCQ64ASI16N chip uses an SPI interface for communication; refer to the chip’s datasheet and your FPGA’s documentation for specific wiring and configuration instructions.
In today’s rapidly evolving electronics industry, high-performance storage solutions are crucial for various embedded systems and complex applications. The EPCQ64ASI16N chip, a high-performance Serial Flash memory produced by Intel, has become an essential component in numerous electronic devices due to its outstanding technical features and wide range of applications.
I. Overview of the Chip
The EPCQ64ASI16N is a high-density serial configuration device specifically designed for configuring and storing FPGA (Field-Programmable Gate Array) or CPLD (Complex Programmable Logic Device). It offers 64Mb of non-volatile storage space, supporting fast configuration and secure storage for a variety of embedded systems.
II. Technical Features
1. High-Density Storage
The EPCQ64ASI16N chip provides 64Mb of storage capacity with a flexible block structure of 4K and 32K. This high-density storage capability enables it to support complex FPGA/CPLD configurations, offering greater flexibility for system design.
2. High-Speed Interface
The chip supports read speeds of up to 104MHz and write speeds of up to 80MHz, allowing for rapid device configuration. Additionally, it features a Quad Serial Peripheral Interface (QSPI), further enhancing data transfer efficiency.
3. Low-Power Design
With an operating voltage of 1.8V, the low-power design of the EPCQ64ASI16N not only improves device energy efficiency but also extends the system’s lifespan.
4. Secure Configuration
The chip offers advanced security features to protect intellectual property within embedded systems, preventing configuration data from being tampered with or stolen.
5. Compact Packaging
The EPCQ64ASI16N is packaged in a 16-pin Small Outline Integrated Circuit (SOIC) form factor, making it suitable for surface-mount applications and easy to integrate into various PCB layouts.
III. Pin Configuration

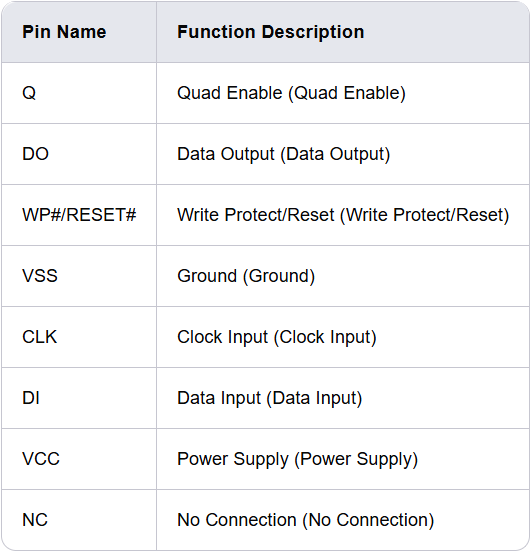

The pin configuration of the EPCQ64ASI16N chip is shown in the table below:
IV. Applications
The EPCQ64ASI16N chip is widely used in the following fields:
1. Embedded Systems
The chip is extensively used in embedded systems, such as smart meters and industrial control devices, providing fast and secure storage for FPGA/CPLD configurations.
2. Communication Equipment
In routers, switches, and other communication devices, the EPCQ64ASI16N is used to store configuration information, ensuring stable device operation.
3. Industrial Control Systems
In PLCs (Programmable Logic Controllers) and motor controllers, the chip reliably stores programs and configuration data, meeting the high demands of industrial environments.
4. Medical Devices
In medical diagnostic equipment and patient monitoring systems, the EPCQ64ASI16N is used to store critical configurations, ensuring device stability and data security.
V. Advantages and Prospects
The EPCQ64ASI16N chip has the following significant advantages:
- High Performance: Fast read and write speeds combined with high-density storage capabilities meet the demands of complex applications.
- Security: Advanced security features protect configuration data within embedded systems.
- Low Power Consumption: The 1.8V operating voltage reduces energy consumption.
- Compact Design: The 16-pin SOIC package is suitable for compact PCB layouts.
- With the continuous development of embedded systems, communication equipment, and industrial control fields, the market demand for the EPCQ64ASI16N chip is expected to grow. In the future, as technology progresses, the chip’s performance and security features are likely to be further enhanced, bringing more value to users.
- In summary, the EPCQ64ASI16N chip, with its outstanding technical features and broad application prospects, has become an indispensable component in modern electronic design. It not only provides strong support for system design but also lays a solid foundation for future technological advancements.
