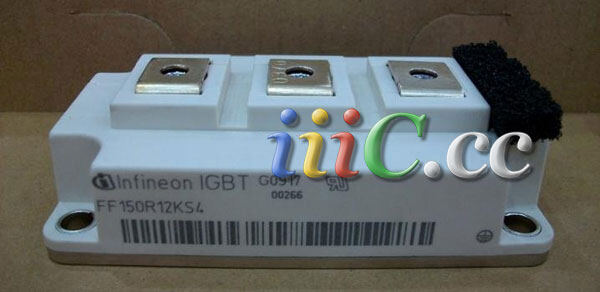

FF150R12KS4
RoHS
/
Package /
Category Discrete Semiconductor Products / Transistors - IGBTs - Modules
Description
Trans IGBT Module N-CH 1.2KV 225A 7-pin 62MM-1
PDF
/
Buying Options
Total Price: USD $96.03
Unit Price: USD $96.03265
≥1 USD $96.03265
≥10 USD $92.93565
≥100 USD $89.8377
≥500 USD $80.54385
Inventory: 431
Minimum: 1
-
+
Technical Details
Physical
Surface Mount NO
Number of Terminals 7
Transistor Element Material SILICON
Technical
Pbfree Code icon-pbfree yes
ECCN Code EAR99
Additional Feature FAST
Subcategory Insulated Gate BIP Transistors
Terminal Position UPPER
Terminal Form UNSPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Reach Compliance Code compliant
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Pin Count 7
JESD-30 Code R-XUFM-X7
Qualification Status Not Qualified
Operating Temperature (Max) 150°C
Number of Elements 2
Configuration SERIES CONNECTED, CENTER TAP, 2 ELEMENTS WITH BUILT-IN DIODE
Case Connection ISOLATED
Polarity/Channel Type N-CHANNEL
Power Dissipation-Max (Abs) 1200W
Turn On Time 180 ns
Collector Current-Max (IC) 225A
Turn Off Time-Nom (toff) 590 ns
Collector-Emitter Voltage-Max 1200V
Gate-Emitter Voltage-Max 20V
VCEsat-Max 3.7 V
Compliance
RoHS Status RoHS Compliant
