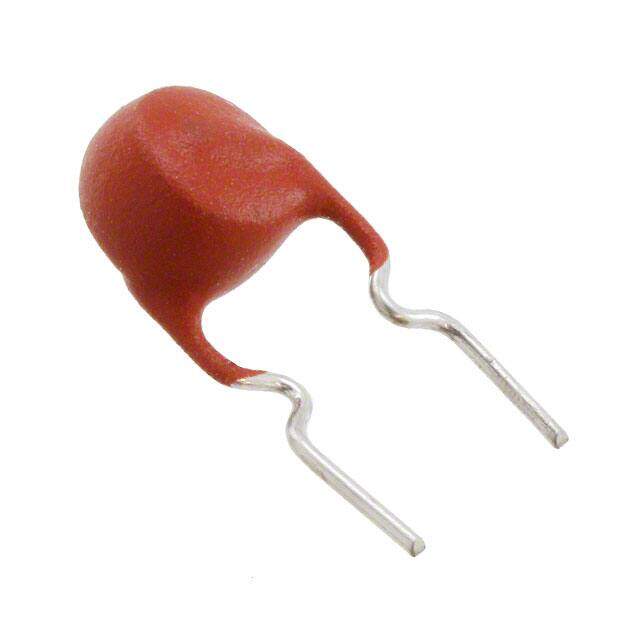

PTGL09AR390M9C61B0
RoHS
RoHS compliant
RoHS compliantPackage Radial, Disc
Category Circuit Protection / PTC Resettable Fuses
Description
Thermistors - PTC 39ohm +/-20% PTC Thermistor
PDF
/
Buying Options
Total Price: USD $0.37
Unit Price: USD $0.366995
≥1 USD $0.366995
≥300 USD $0.14203
≥600 USD $0.137027
≥900 USD $0.134572
Inventory: 974
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Thickness 4mm
Height Seated (Max) 0.630 16.00mm
Technical
Resistance @ 25°C 39Ohm
Trip Current 210mA
Thermistor Application OVERLOAD PROTECTION
Hold Current 130mA
Current - Max 1.2A
Max Current Rating 1.2A
Voltage 265V
Lead Spacing 0.256 6.50mm
Operating Supply Voltage 265V
Lead Pitch 5mm
Approval Agency UL
Current Rating 1.2mA
Depth 6.5mm
HTS Code 8533.40.80.70
Terminal Finish Tin/Copper (Sn/Cu)
Resistance 39Ohm
Type Ceramic
ECCN Code EAR99
Termination Radial
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e2
Tolerance 20%
Size / Dimension 0.394Dia x 0.256 T 10.00mmx6.50mm
Series POSISTOR?, PTGL
Packaging Bulk
Operating Temperature -10°C~60°C
Physical
Weight 369.989626mg
Number of Pins 2
Terminal Shape WIRE
Package / Case Radial, Disc
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 10 Weeks
