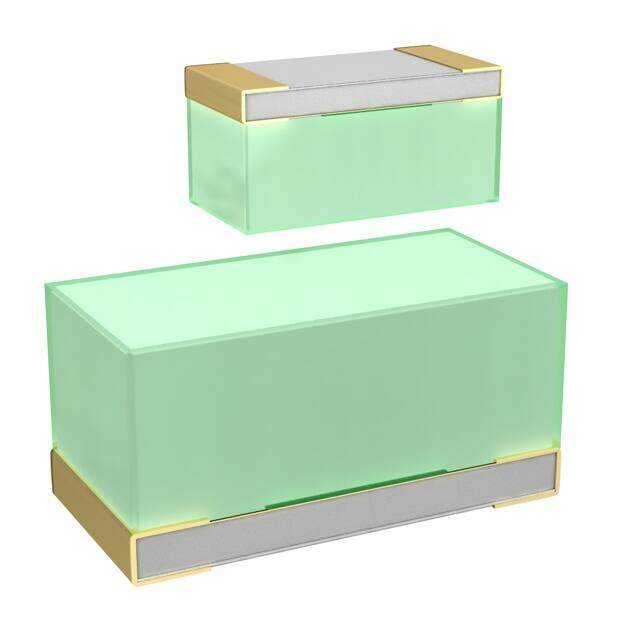

3413.0010.11
RoHS
RoHS compliant
RoHS compliantPackage 1206 (3216 Metric)
Category Circuit Protection / Fuses
Description
FUSE BRD MNT 250MA 125VAC 63VDC
PDF
/
Buying Options
Total Price: USD $0.69
Unit Price: USD $0.6864
≥1 USD $0.6864
≥10 USD $0.53152
≥100 USD $0.4378
Inventory: 894
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Height 1.6002mm
Technical
Pre-arcing Time-Min 0.1ms
Trip Time or Delay 14400 s
Fuse Current 250mA
Blow Characteristic SUPER FAST
Circuit Protection Type ELECTRIC FUSE
DC Cold Resistance 0.255Ohm
Melting I2t 0.0032
Breaking Capacity @ Rated Voltage 10A AC 100A DC
Fuse Type Board Mount (Cartridge Style Excluded)
Response Time Fast Blow
Max Voltage Rating (DC) 63V
Max Voltage Rating (AC) 125V
Physical Dimension 3.2mm x 1.6mm x 1.6mm
Body Length or Diameter 3.2mm
Approval Agency cURus
Voltage - Rated AC 125V
Reference Standard CSA; UL
Current Rating 250mA
Depth 1.6mm
Packing Method BLISTER TAPE
Voltage - Rated DC 63V
HTS Code 8536.10.00.40
Resistance 255mOhm
ECCN Code EAR99
Termination SMD/SMT
Moisture Sensitivity Level (MSL) Vendor Undefined
Part Status Active
Size / Dimension 0.126Lx0.063W x 0.063 H 3.20mmx1.60mmx1.60mm
Series USFF 1206
Packaging Bulk
Operating Temperature -55°C~90°C
Physical
Body Material Glass
Weight 99.988768mg
Terminal Shape WRAPAROUND
Package / Case 1206 (3216 Metric)
Mounting Type Surface Mount
Mount PCB, Surface Mount
Contact Plating Gold
Supply Chain
Factory Lead Time 26 Weeks
