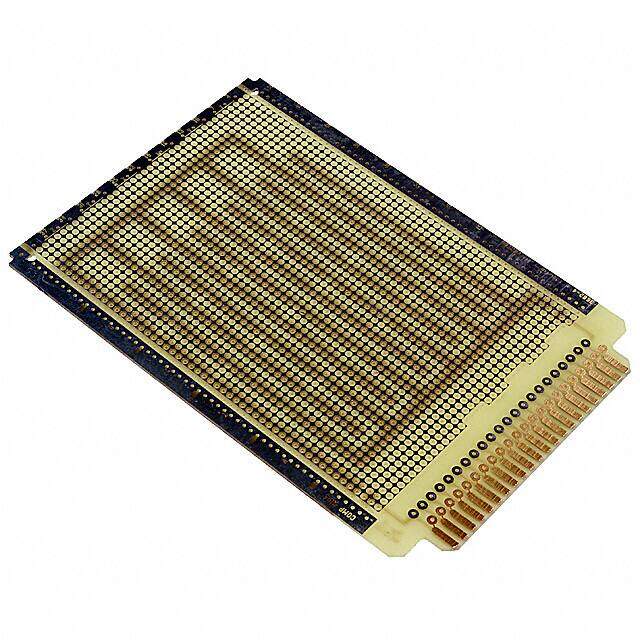

3682-4
RoHS
/
Package Epoxy
Category Prototyping, Fabrication Products / Prototype Boards Perforated
Description
PCB INTRLVD BUSES/GNDPLN 4.5X6.5
PDF
/
Buying Options
Total Price: USD $21.46
Unit Price: USD $21.4632
≥1 USD $21.4632
Inventory: 29
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 2 Weeks
Physical
Mount PCB
Package / Case Epoxy
Material Glass
Technical
Published 1998
Series Vectorbord? Plugbord?
Size / Dimension 6.50Lx4.50W 165.1mmx114.3mm
Part Status Active
Pitch 0.100 2.54mm
Plating Non-Plated Through Hole (NPTH)
Hole Diameter 0.042 (1.07mm)
Proto Board Type Plugboard, Card Edge
Circuit Pattern Pad Per Hole (Round), Ground Plane
Edge Contacts 44 @ 0.156 (3.96mm)
Dimensions
Thickness 1.57mm
Board Thickness 0.062 1.57mm 1/16
Compliance
RoHS Status Non-RoHS Compliant
