RoHS
/
Package Epoxy
Category Prototyping, Fabrication Products / Prototype Boards Perforated

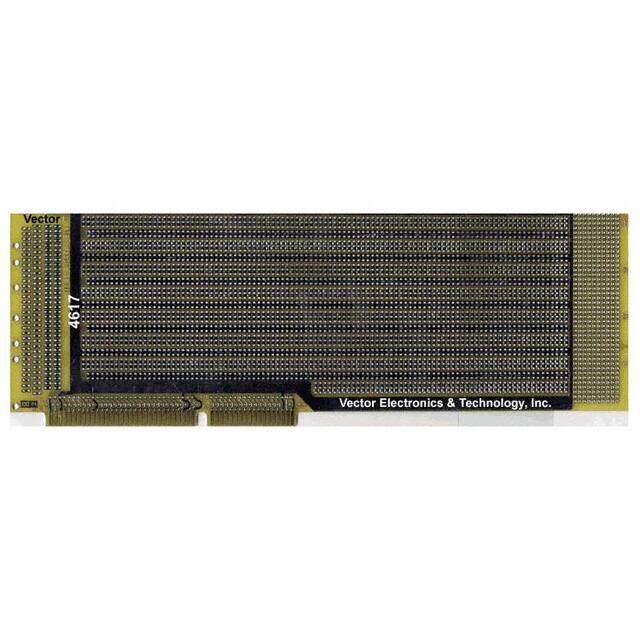

Description PC BOARD 3-HOLE SLDR PAD IBM AT
PDF
/
Inventory: 1620
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status Non-RoHS Compliant

Dimensions

Board Thickness 0.062 1.57mm 1/16
Thickness 1.57mm
Width 336.55mm
Length 114.3mm
Height 1.57mm

Technical

Edge Contacts 98 @ 0.1 (2.54mm)
Circuit Pattern 3 Hole Pad (Single Side)
Proto Board Type Plugboard, Card Edge
Hole Diameter 0.042 (1.07mm)
Plating Non-Plated Through Hole (NPTH)
Pitch 0.100 2.54mm
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Size / Dimension 4.50Lx3.25W 114.3mmx82.6mm
Series Vectorbord? Plugbord?

Physical

Material Brass, Glass
Package / Case Epoxy
Mount External
Contact Material Glass

Supply Chain

Factory Lead Time 2 Weeks
