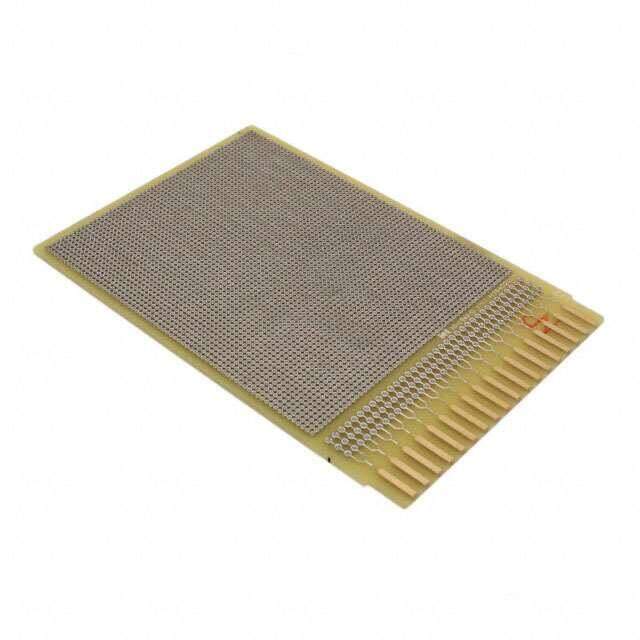

7036-50
RoHS
/
Package /
Category Prototyping, Fabrication Products / Prototype Boards Perforated
Description
PCB, PROTOTYPE BOARD, FR4
PDF
/
Inventory: 7013
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
REACH SVHC Unknown
Dimensions
Width 76.2mm
Length 101.6mm
Height 114.3mm
Technical
Edge Contacts 36 @ 0.156 (3.96mm)
Circuit Pattern Pad Per Hole (Round)
Proto Board Type Plugboard, Card Edge
Hole Diameter 0.028 (0.70mm)
Plating Plated Through Hole (PTH)
Pitch 0.050 1.27mm
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Size / Dimension 4.00Lx3.50W 101.6mmx88.9mm
Published 2010
Physical
Material Glass
Mount PCB
Supply Chain
Factory Lead Time 3 Weeks
