74479776222
RoHS
RoHS compliant
RoHS compliantPackage 0806 (2016 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
FIXED IND 2.2UH 1.2A 110 MOHM
PDF
/
Buying Options
Total Price: USD $0.16
Unit Price: USD $0.1615
≥1 USD $0.1615
≥10 USD $0.133
≥100 USD $0.12825
≥500 USD $0.12445
≥1000 USD $0.12065
Inventory: 4986
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Mounting Type Surface Mount
Package / Case 0806 (2016 Metric)
Number of Pins 2
Supplier Device Package 0806 (2016 Metric)
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series WE-PMI
Size / Dimension 0.079Lx0.063W 2.00mmx1.60mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Multilayer
Current Rating (Amps) 1.2A
Shielding Shielded
Current Rating 1.2A
Inductance 2.2μH
DC Resistance (DCR) 110mOhm
Frequency - Self Resonant 75MHz
Q @ Freq 10 @ 1MHz
Inductance Frequency - Test 1MHz
Current - Saturation 400mA
Q Factor 10
Inductance Tolerance 20%
Dimensions
Height Seated (Max) 0.039 1.00mm
Compliance
RoHS Status ROHS3 Compliant

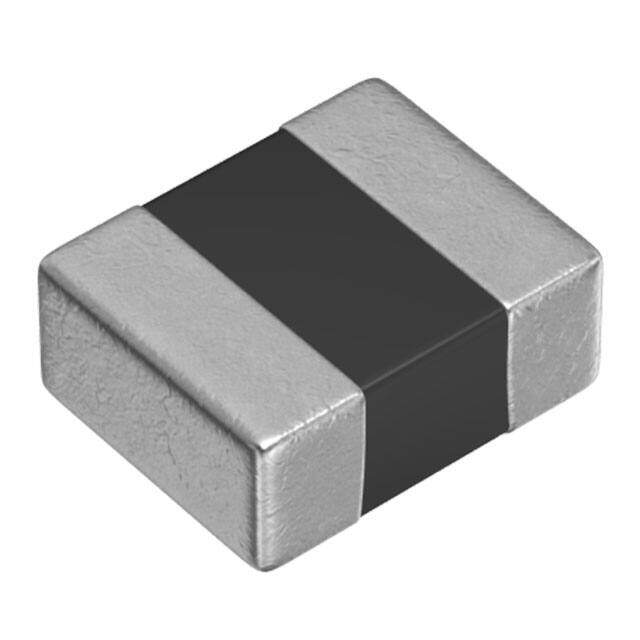

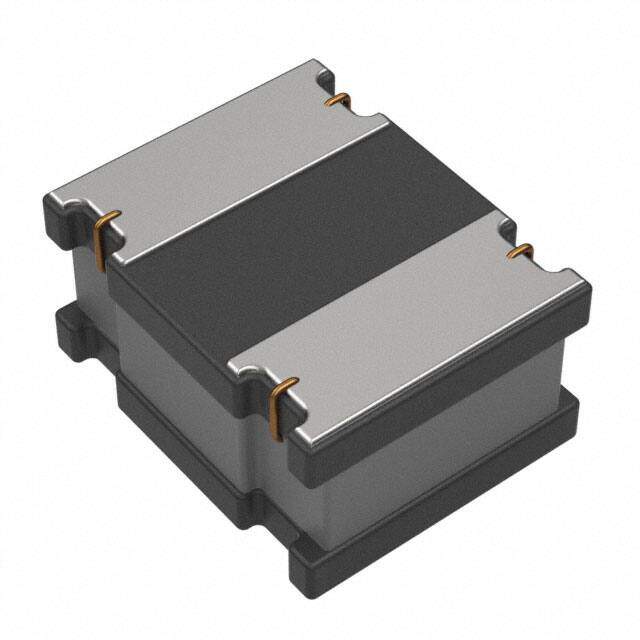

Alternative Model
