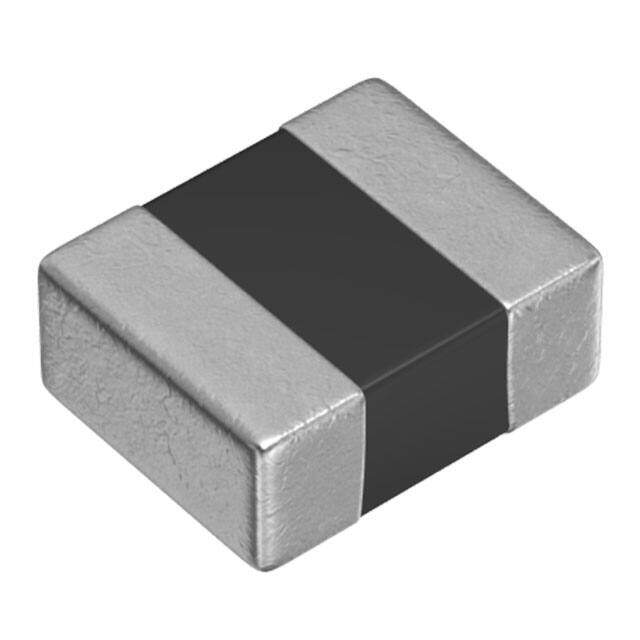

MLP2016V2R2MT0S1
RoHS
RoHS compliant
RoHS compliantPackage 0806 (2016 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
MLP 0806 (2016Metric) 0.079Lx0.063W 2.00mmx1.60mm 2.2muH
PDF
/
Buying Options
Total Price: USD $0.26
Unit Price: USD $0.264
≥1 USD $0.264
≥10 USD $0.21472
≥100 USD $0.197824
≥500 USD $0.181456
≥1000 USD $0.159984
≥3000 USD $0.155056
Inventory: 1090
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Lifecycle Status PRODUCTION (Last Updated: 2 months ago)
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 0806 (2016 Metric)
Terminal Shape WRAPAROUND
Material - Core Ferrite
Shape/Size Description RECTANGULAR PACKAGE
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Published 2013
Series MLP
Size / Dimension 0.079Lx0.063W 2.00mmx1.60mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Type Multilayer
HTS Code 8504.50.80.00
Shielding Shielded
Number of Functions 1
Current Rating 1A
Case Code (Metric) 2016
Case Code (Imperial) 0806
Inductance 2.2μH
Test Frequency 2MHz
DC Resistance (DCR) 212.5mOhm Max
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Inductance Frequency - Test 2MHz
Rated Current-Max 1A
Special Feature DCR MEASURED AT 25% TOLERANCE
Dimensions
Height Seated (Max) 0.039 1.00mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
