744774168
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description

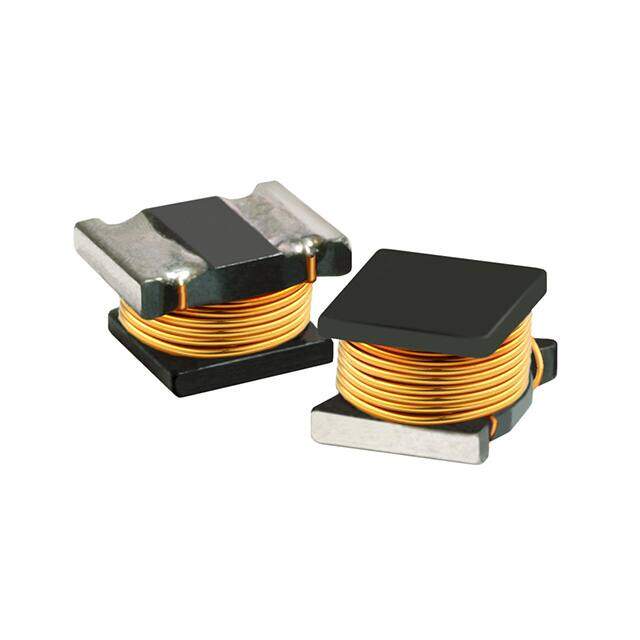

WE-PD2 Nonstandard 0.228Lx0.205W 5.80mmx5.20mm 68muH
PDF
/
Buying Options
Total Price: USD $14.61
Unit Price: USD $14.611
≥1 USD $14.611
≥10 USD $11.989
≥100 USD $11.61375
≥500 USD $11.23945
≥1000 USD $10.86515
Inventory: 1129
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Number of Pins 2
Material - Core Ferrite
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series WE-PD2
Size / Dimension 0.228Lx0.205W 5.80mmx5.20mm
Tolerance ±10%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Type Wirewound
Resistance 460mOhm
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 640mA
Shielding Unshielded
Depth 5.2mm
Current Rating 640mA
Inductance 68μH
Test Frequency 10kHz
DC Resistance (DCR) 460mOhm Max
Max DC Current 640mA
Frequency - Self Resonant 10MHz
Inductance Frequency - Test 10kHz
Current - Saturation 860mA
Inductance Tolerance 10%
RMS Current (Irms) 640mA
Dimensions
Height 4.5mm
Height Seated (Max) 0.191 4.85mm
Length 5.8mm
Width 5.207mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
Lead Free Lead Free
