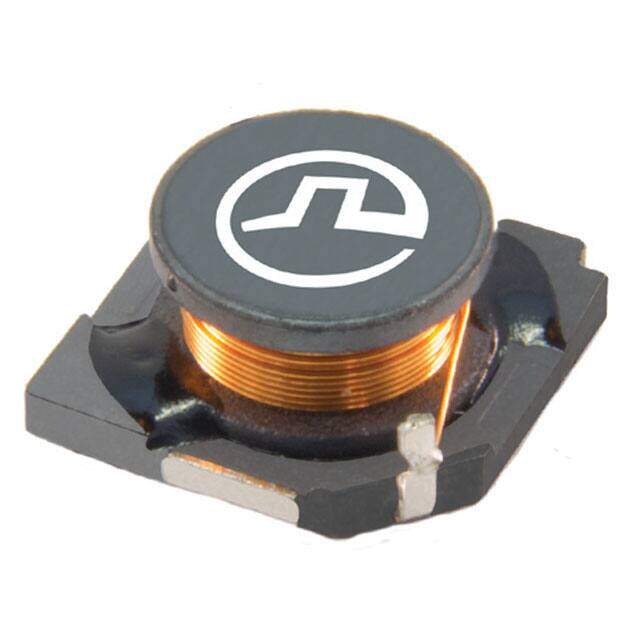

PA4305.683NLT image
Favorite
PA4305.683NLT image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description FIXED IND 68UH 800MA 950 MOHM
PDF
/
Buying Options
Total Price: USD $0.88
Unit Price: USD $0.88
≥1 USD $0.88
≥10 USD $0.74448
≥100 USD $0.676544
≥500 USD $0.636064
≥1000 USD $0.527736
≥3000 USD $0.487168
Inventory: 9065
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant

Dimensions

Height Seated (Max) 0.126 3.20mm

Technical

Inductance Frequency - Test 100kHz
DC Resistance (DCR) 950mOhm Max
Test Frequency 100kHz
Inductance 68μH
Current Rating 800mA
Shielding Unshielded
HTS Code 8504.50.80.00
Type Wirewound
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.248Lx0.248W 6.30mmx6.30mm
Series PA4305.XXXNL
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C

Physical

Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 11 Weeks
