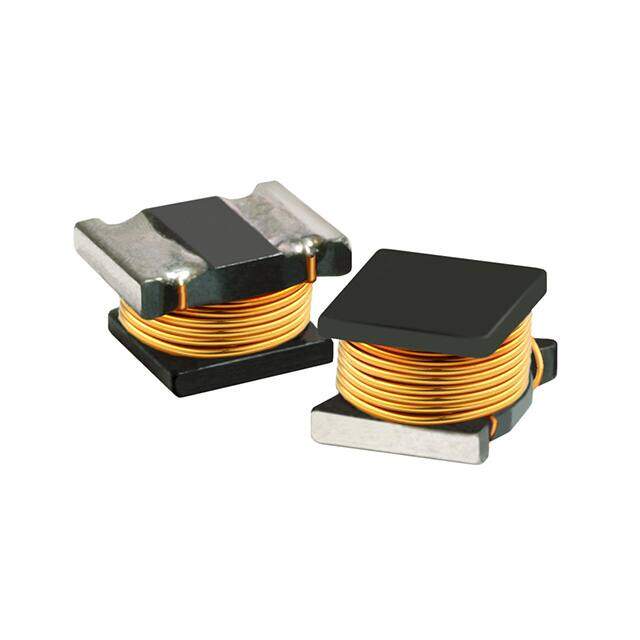

84683C image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description 8400 Nonstandard 0.177Lx0.130W 4.50mmx3.30mm 68muH
PDF
/
Buying Options
Total Price: USD $0.4
Unit Price: USD $0.400402
≥1 USD $0.400402
≥10 USD $0.377741
≥100 USD $0.356356
≥500 USD $0.336186
≥1000 USD $0.317159
Inventory: 1134
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 10 Weeks

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape ONE SURFACE
Shape/Size Description RECTANGULAR PACKAGE

Technical

Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series 8400
Size / Dimension 0.177Lx0.130W 4.50mmx3.30mm
Tolerance ±10%
JESD-609 Code e1
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Type Wirewound
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
HTS Code 8504.50.80.00
Shielding NO
Number of Functions 1
Depth 3.6mm
Current Rating 380mA
Inductance 68μH
DC Resistance (DCR) 1.6Ohm Max
Max DC Current 380mA
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED

Dimensions

Height 2.6mm
Height Seated (Max) 0.114 2.90mm

Compliance

Radiation Hardening No
RoHS Status RoHS Compliant
