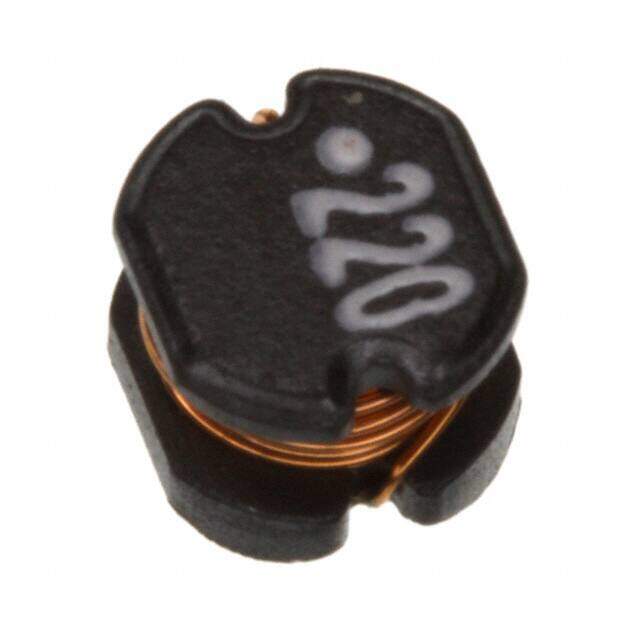

744773122
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-PD2 Nonstandard 0.177Lx0.157W 4.50mmx4.00mm 22muH
PDF
/
Buying Options
Total Price: USD $14.57
Unit Price: USD $14.5673
≥1 USD $14.5673
≥10 USD $11.9529
≥100 USD $11.57955
≥500 USD $11.2062
≥1000 USD $10.8319
Inventory: 7306
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Number of Pins 2
Material - Core Ferrite
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series WE-PD2
Size / Dimension 0.177Lx0.157W 4.50mmx4.00mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Type Wirewound
Resistance 370mOhm
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 1A
Shielding Unshielded
Current Rating 1A
Inductance 22μH
Test Frequency 10kHz
DC Resistance (DCR) 370mOhm Max
Max DC Current 1A
Frequency - Self Resonant 20MHz
Inductance Frequency - Test 10kHz
Current - Saturation 1.22A
Inductance Tolerance 20%
RMS Current (Irms) 1A
Dimensions
Height 3.2mm
Height Seated (Max) 0.138 3.50mm
Length 4.4958mm
Width 4mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
Lead Free Lead Free
