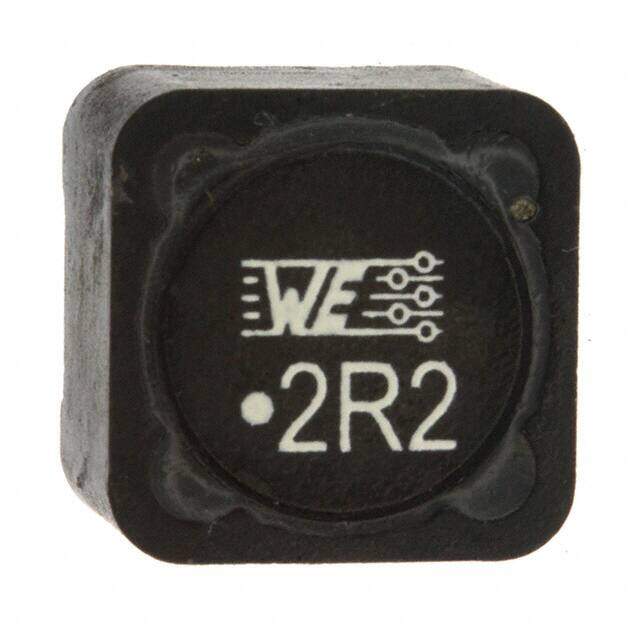

7447709002
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-PD Nonstandard 0.472Lx0.472W 12.00mmx12.00mm 2.2muH
PDF
/
Buying Options
Total Price: USD $2.25
Unit Price: USD $2.2528
≥1 USD $2.2528
≥10 USD $2.0636
≥100 USD $1.94128
≥500 USD $1.81984
Inventory: 906
Minimum: 1
-
+
Technical Details
Compliance
Ratings AEC-Q200
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Width 12mm
Length 12mm
Height Seated (Max) 0.394 10.00mm
Height 10mm
Technical
Series Resistance 6mOhm
RMS Current (Irms) 11.5A
Inductance Tolerance 20%
Current - Saturation 20A
Inductance Frequency - Test 1kHz
Frequency - Self Resonant 65MHz
Max DC Current 11.5A
DC Resistance (DCR) 6mOhm Max
Test Frequency 1kHz
Inductance 2.2μH
Case Code (Imperial) 1210
Case Code (Metric) 3225
Current Rating 11.5A
Depth 12mm
Shielding Shielded
Current Rating (Amps) 11.5A
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Resistance 6mOhm
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.472Lx0.472W 12.00mmx12.00mm
Series WE-PD
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Material - Core Ferrite
Weight 45.359237g
Number of Pins 2
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 16 Weeks
