SDR1307-2R2ML
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description

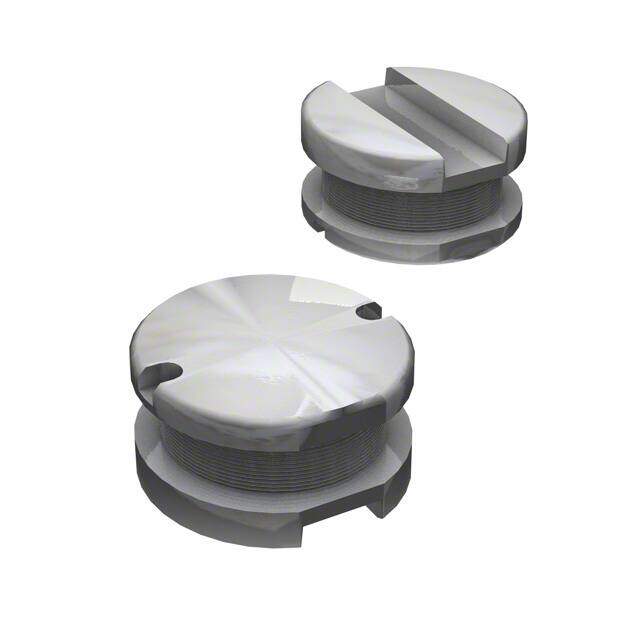

SDR1307 Nonstandard 0.512Lx0.512W 13.00mmx13.00mm 2.2muH
PDF
/
Buying Options
Total Price: USD $0.87
Unit Price: USD $0.8712
≥1 USD $0.8712
≥10 USD $0.73832
≥100 USD $0.670912
≥500 USD $0.630608
≥1000 USD $0.523248
Inventory: 691
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape ONE SURFACE
Material - Core Ferrite
Shape/Size Description CYLINDRICAL PACKAGE
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Published 2006
Series SDR1307
Size / Dimension 0.512Lx0.512W 13.00mmx13.00mm
Tolerance ±20%
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Type Wirewound
Terminal Finish Tin (Sn) - with Nickel (Ni) barrier
HTS Code 8504.50.80.00
Packing Method TR, EMBOSSED, 13 INCH
Shielding NO
Number of Functions 1
Construction Cylindrical
Current Rating 9A
Military Standard Not
Inductance 2.2μH
Test Frequency 100kHz
DC Resistance (DCR) 6mOhm Max
Max DC Current 9A
Frequency - Self Resonant 50MHz
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Q @ Freq 22 @ 7.96MHz
Current - Saturation 18A
Q Factor 22
Case/Size Code 2851
Inductance Tolerance 20%
DC Current 9A
RMS Current (Irms) 9A
Dimensions
Diameter 13mm
Height 7mm
Height Seated (Max) 0.287 7.30mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Alternative Model
