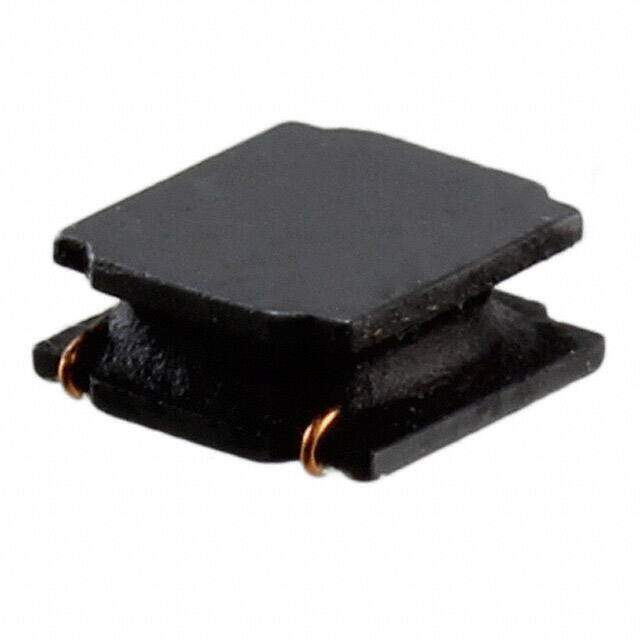

L4018C2R2MDWDT
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
L-DWD Nonstandard 0.157Lx0.157W 4.00mmx4.00mm 2.2muH
PDF
/
Buying Options
Total Price: USD $0.51
Unit Price: USD $0.507413
≥1 USD $0.507413
≥10 USD $0.478689
≥100 USD $0.451594
≥500 USD $0.426031
≥1000 USD $0.401915
Inventory: 7754
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.071 1.80mm
Technical
Special Feature DCR MEASURED AT 30% TOLERANCE
DC Current 1.44A
Case/Size Code 1616
Terminal Placement DUAL ENDED
Inductor Application RF INDUCTOR
Frequency - Self Resonant 52MHz
DC Resistance (DCR) 60mOhm Max
Test Frequency 100kHz
Inductance 2.2μH
Military Standard Not
Current Rating 1.44A
Construction Chip
Depth 4.2mm
Number of Functions 1
Shielding YES
Packing Method TR
HTS Code 8504.50.80.00
Terminal Finish Matte Tin (Sn)
Resistance 60mOhm
Type Wirewound
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Tolerance ±20%
Size / Dimension 0.157Lx0.157W 4.00mmx4.00mm
Series L-DWD
Published 2008
Packaging Tape & Reel (TR)
Operating Temperature -25°C~120°C
Physical
Shape/Size Description RECTANGULAR PACKAGE
Material - Core Ferrite
Terminal Shape WRAPAROUND
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 19 Weeks
