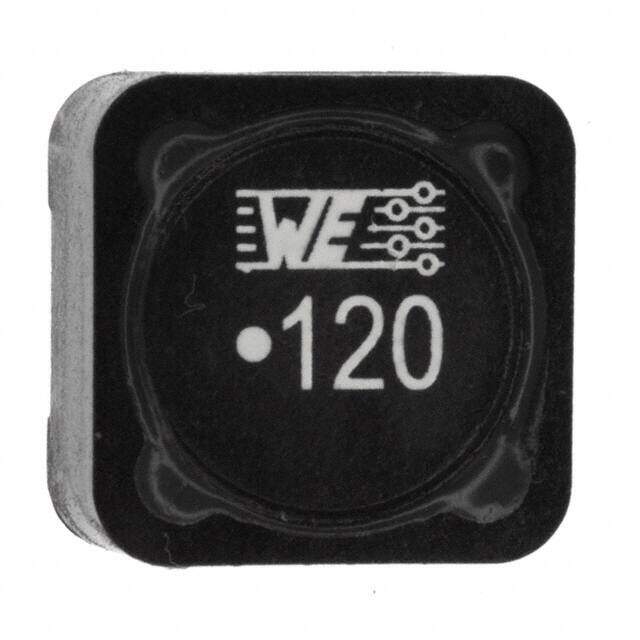

744770112
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-PD Nonstandard 0.472Lx0.472W 12.00mmx12.00mm 12muH
PDF
/
Buying Options
Total Price: USD $0.69
Unit Price: USD $0.6859
≥1 USD $0.6859
≥10 USD $0.56335
≥100 USD $0.5453
≥500 USD $0.5282
≥1000 USD $0.51015
Inventory: 1187
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Material - Core Ferrite
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series WE-PD
Size / Dimension 0.472Lx0.472W 12.00mmx12.00mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Type Wirewound
Resistance 24mOhm
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 5.9A
Shielding Shielded
Depth 12mm
Current Rating 5.9A
Inductance 12μH
Test Frequency 1kHz
DC Resistance (DCR) 24mOhm Max
Max DC Current 5.9A
Frequency - Self Resonant 16MHz
Inductance Frequency - Test 1kHz
Current - Saturation 6.3A
Inductance Tolerance 20%
RMS Current (Irms) 5.9A
Series Resistance 24mOhm
Dimensions
Height 8mm
Height Seated (Max) 0.315 8.00mm
Length 12mm
Width 12mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
Ratings AEC-Q200

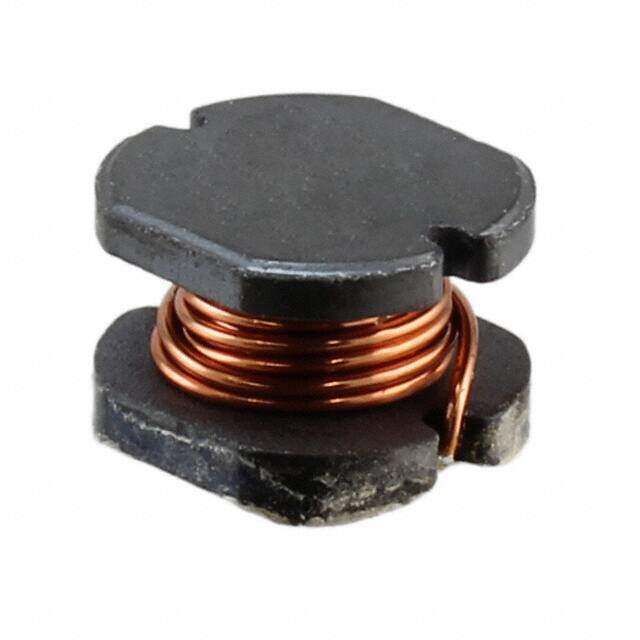

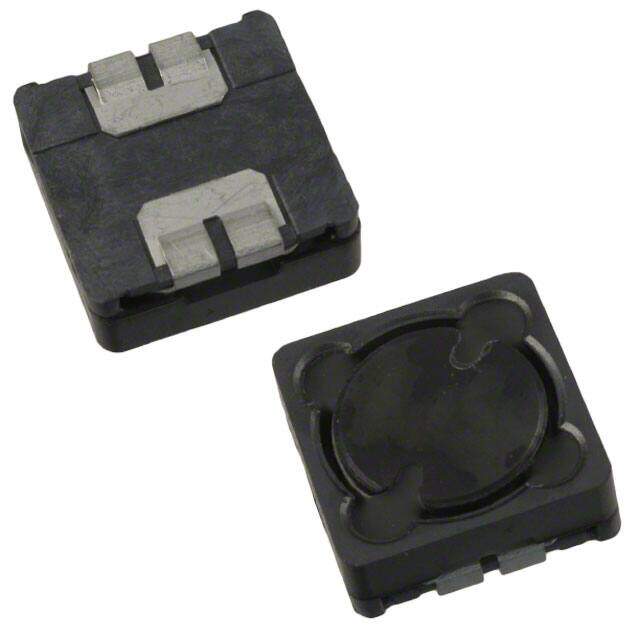

Alternative Model
