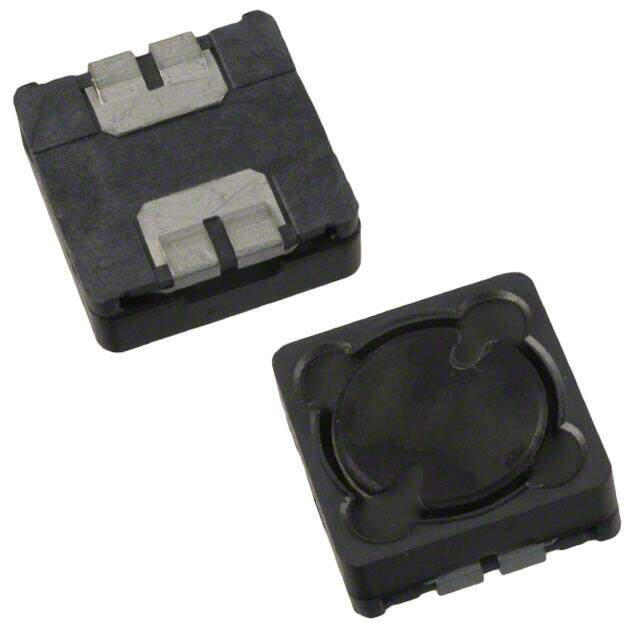

SRR1205-120ML
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
SRR1205 Nonstandard 0.500Lx0.500W 12.70mmx12.70mm 12muH
PDF
/
Inventory: 7681
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Type Wirewound
Terminal Finish Tin (Sn) - with Nickel (Ni) barrier
HTS Code 8504.50.80.00
Packing Method TR
Shielding YES
Number of Functions 1
Depth 13mm
Current Rating 2.8A
Military Standard Not
Inductance 12μH
Test Frequency 1kHz
DC Resistance (DCR) 65mOhm Max
Max DC Current 2.8A
Frequency - Self Resonant 13MHz
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Q @ Freq 20 @ 2.52MHz
Quality Factor-Min (at L-nom) 20
Current - Saturation 5.6A
Q Factor 20
Case/Size Code 5050
Inductance Tolerance 20%
DC Current 2.8A
Pbfree Code yes
JESD-609 Code e3
Tolerance ±20%
Size / Dimension 0.500Lx0.500W 12.70mmx12.70mm
Series SRR1205
Published 2005
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Dimensions
Height 5.5mm
Height Seated (Max) 0.217 5.50mm
Compliance
RoHS Status ROHS3 Compliant
Physical
Shape/Size Description RECTANGULAR PACKAGE
Material - Core Ferrite
Terminal Shape WRAPAROUND
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 18 Weeks
