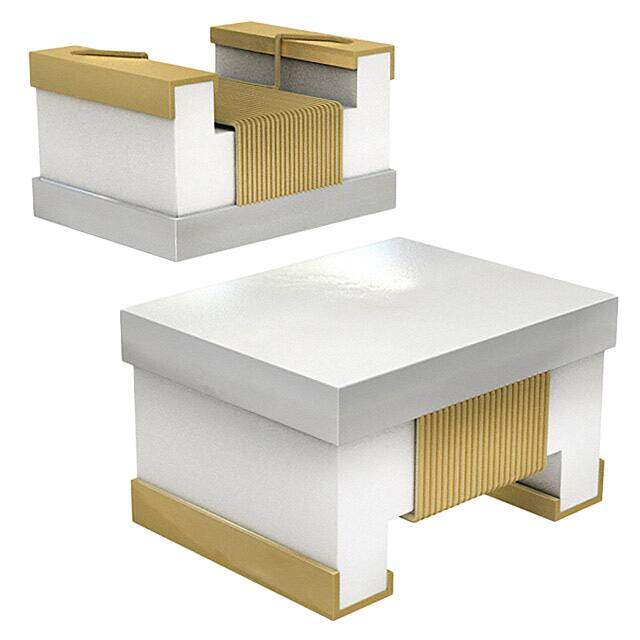

744762322A
RoHS
RoHS compliant
RoHS compliantPackage 1008 (2520 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-RFI 1008 (2520Metric) 0.102Lx0.083W 2.60mmx2.10mm 2.2muH
PDF
/
Inventory: 1350
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Width 2.0066mm
Length 2.4892mm
Height Seated (Max) 0.075 1.90mm
Height 990.6μm
Technical
Inductance Tolerance 5%
Q Factor 20
Inductance Frequency - Test 7.96MHz
Q @ Freq 20 @ 7.96MHz
Frequency - Self Resonant 160MHz
Max DC Current 200mA
DC Resistance (DCR) 2.35Ohm Max
Test Frequency 7.96MHz
Inductance 2.2μH
Case Code (Imperial) 1008
Case Code (Metric) 2520
Current Rating 200mA
Shielding Unshielded
Current Rating (Amps) 200mA
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Type Wirewound
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Discontinued
Tolerance ±5%
Size / Dimension 0.102Lx0.083W 2.60mmx2.10mm
Series WE-RFI
Packaging Cut Tape (CT)
Operating Temperature -40°C~85°C
Physical
Material - Core Ferrite
Supplier Device Package 1008 (2520 Metric)
Package / Case 1008 (2520 Metric)
Mounting Type Surface Mount
Mount Surface Mount

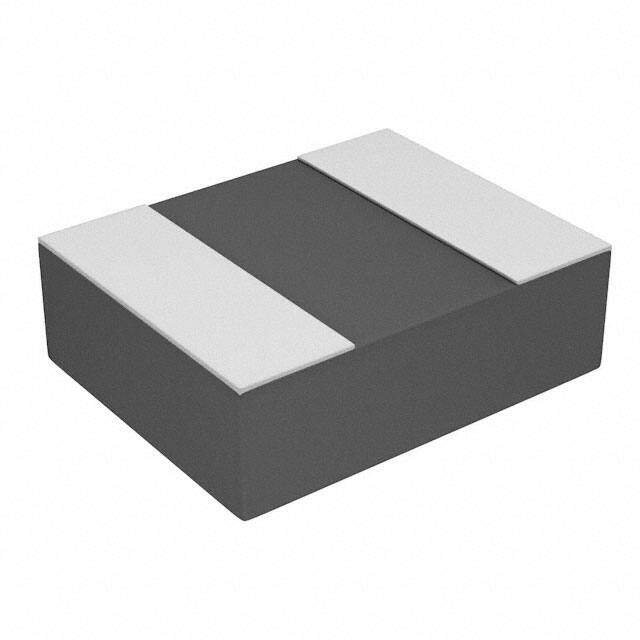

Alternative Model
