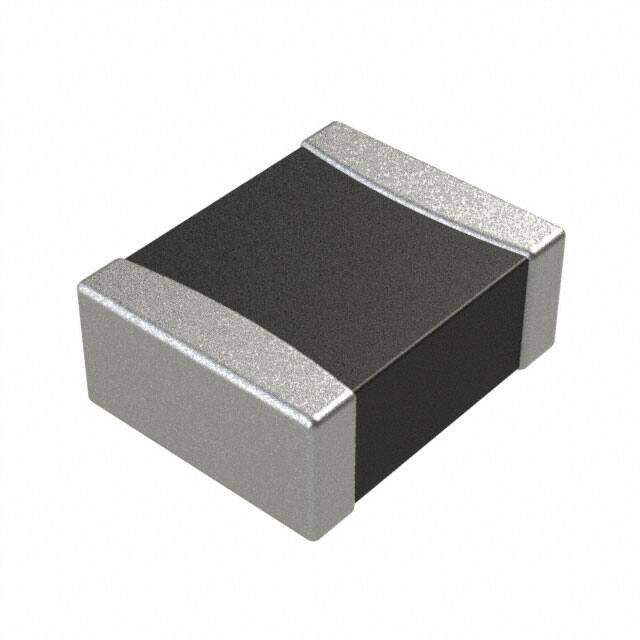

LPWI252010S2R2T
RoHS
RoHS compliant
RoHS compliantPackage 1008 (2520 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
LPWI 1008 (2520Metric) 0.098Lx0.079W 2.50mmx2.00mm 2.2muH
PDF
/
Buying Options
Total Price: USD $0.35
Unit Price: USD $0.352
≥1 USD $0.352
≥10 USD $0.29832
≥100 USD $0.273504
≥500 USD $0.248688
≥1000 USD $0.22132
≥3000 USD $0.208842
Inventory: 1132
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.039 1.00mm
Technical
Inductance Frequency - Test 1MHz
DC Resistance (DCR) 110mOhm Max
Inductance 2.2μH
Reach Compliance Code unknown
Shielding Shielded
Current Rating (Amps) 2.5A
Type Thin Film
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.098Lx0.079W 2.50mmx2.00mm
Series LPWI
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Material - Core Metal Composite
Package / Case 1008 (2520 Metric)
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 12 Weeks

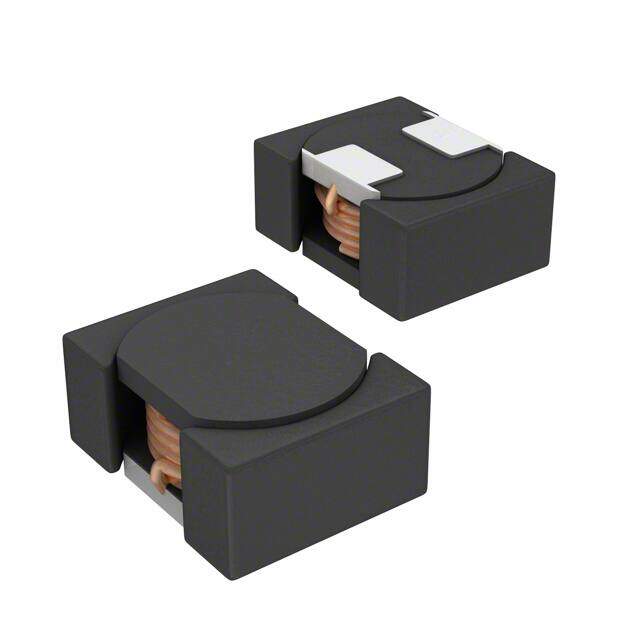

Alternative Model
