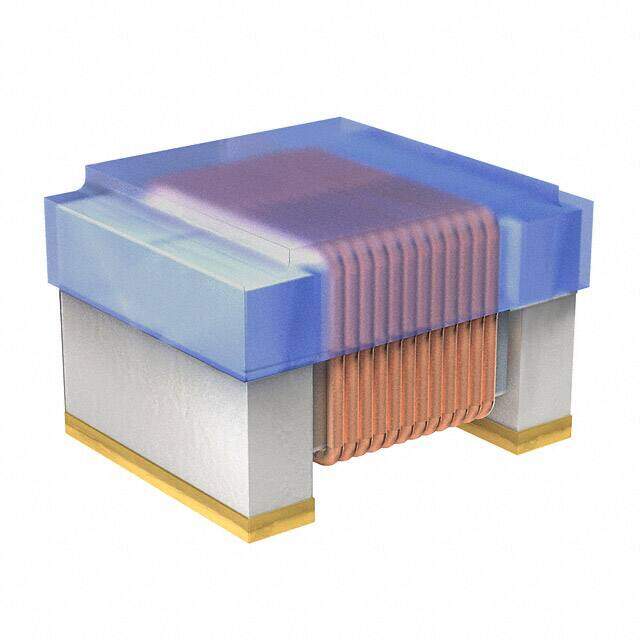

744758322A image
Favorite
744758322A image
Favorite

744758322A

Würth Elektronik
RoHS
RoHS RoHS compliant
Package 1008 (2520 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description WE-RFH 1008 (2520Metric) 0.102Lx0.083W 2.60mmx2.10mm 2.2muH
PDF
/
Buying Options
Total Price: USD $4.4
Unit Price: USD $4.4042
≥1 USD $4.4042
≥10 USD $3.6138
≥100 USD $3.50075
≥500 USD $3.3877
≥1000 USD $3.2756
Inventory: 1170
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
REACH SVHC Unknown

Dimensions

Width 2.0066mm
Length 2.5908mm
Height Seated (Max) 0.075 1.90mm
Height 990.6μm

Technical

Inductance Tolerance 5%
Q Factor 20
Inductance Frequency - Test 7.96MHz
Q @ Freq 20 @ 7.96MHz
Frequency - Self Resonant 160MHz
Max DC Current 520mA
DC Resistance (DCR) 1.1Ohm Max
Test Frequency 7.96MHz
Inductance 2.2μH
Case Code (Imperial) 1008
Case Code (Metric) 2520
Current Rating 520mA
Shielding Unshielded
Current Rating (Amps) 520mA
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±5%
Size / Dimension 0.102Lx0.083W 2.60mmx2.10mm
Series WE-RFH
Packaging Cut Tape (CT)
Operating Temperature -40°C~85°C

Physical

Material - Core Ferrite
Weight 32.006612mg
Supplier Device Package 1008 (2520 Metric)
Package / Case 1008 (2520 Metric)
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 10 Weeks
