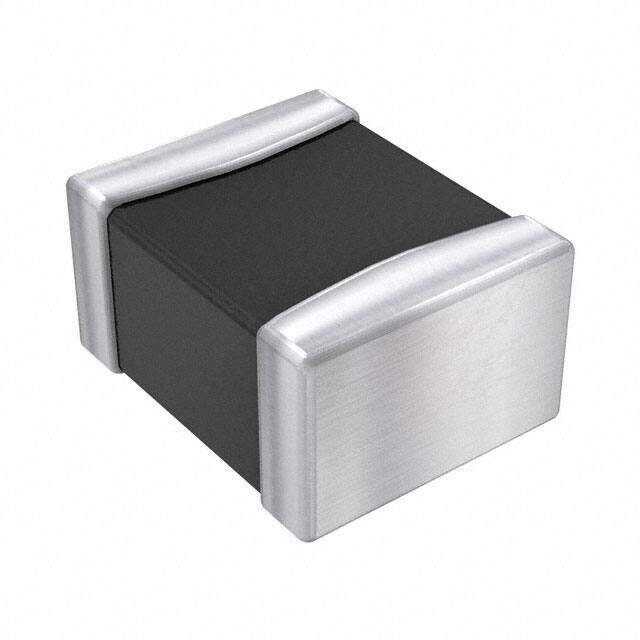

PE-1008CD222GTT image
Favorite
PE-1008CD222GTT image
Favorite

PE-1008CD222GTT

Pulse Electronics Network
RoHS
RoHS RoHS compliant
Package 1008 (2520 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description 1008CD 1008 (2520Metric) 0.115Lx0.110W 2.92mmx2.79mm 2.2muH
PDF
/
Inventory: 3926
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 9 Weeks

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case 1008 (2520 Metric)
Terminal Shape WRAPAROUND
Material - Core Ceramic
Shape/Size Description RECTANGULAR PACKAGE

Technical

Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Published 2007
Series 1008CD
Size / Dimension 0.115Lx0.110W 2.92mmx2.79mm
Tolerance ±2%
JESD-609 Code e4
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Type Wirewound
Terminal Finish Gold (Au)
HTS Code 8504.50.80.00
Packing Method TR, 7 Inch
Shielding NO
Number of Functions 1
Depth 2.79mm
Construction Chip
Current Rating 280mA
Military Standard Not
Case Code (Metric) 2520
Case Code (Imperial) 1008
Inductance 2.2μH
Test Frequency 7.9MHz
DC Resistance (DCR) 2.8Ohm Max
Max DC Current 280mA
Frequency - Self Resonant 80MHz
Inductor Application RF INDUCTOR
Terminal Placement DUAL ENDED
Q @ Freq 28 @ 50MHz
Quality Factor-Min (at L-nom) 28
Q Factor 28
DC Current 280mA
Special Feature Q MEASURED AT 50 MHZ

Dimensions

Height 2.29mm
Height Seated (Max) 0.090 2.29mm

Compliance

Radiation Hardening No
RoHS Status RoHS Compliant
