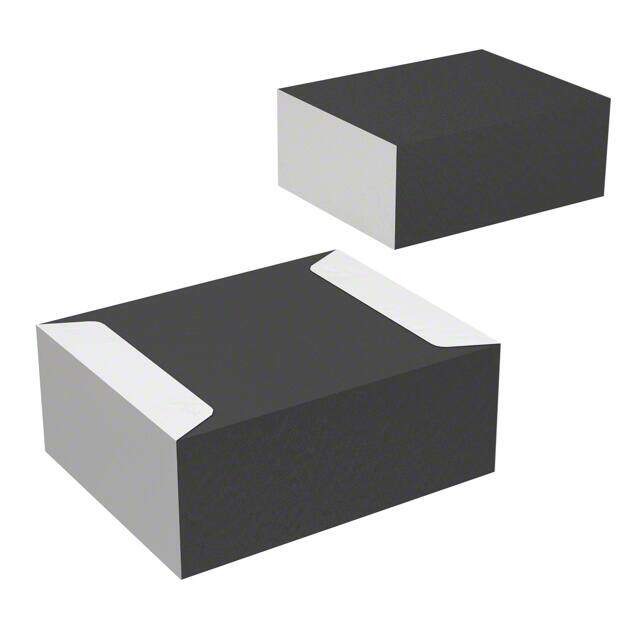

ELJ-FC2R2KF image
Favorite
ELJ-FC2R2KF image
Favorite
RoHS
/
Package 1008 (2520 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description FC 1008 (2520Metric) 0.098Lx0.079W 2.50mmx2.00mm 2.2muH
PDF
/
Inventory: 2002
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant
Radiation Hardening No

Dimensions

Height Seated (Max) 0.071 1.80mm
Height 2.2098mm

Technical

DC Current 155mA
Q @ Freq 25 @ 7.96MHz
Frequency - Self Resonant 80MHz
Max DC Current 155mA
Current 125mA
DC Resistance (DCR) 1.05Ohm Max
Test Frequency 7.96MHz
Inductance 2.2μH
Case Code (Imperial) 1210
Case Code (Metric) 3225
Military Standard Not
Current Rating 155mA
Depth 2.2mm
Shielding Unshielded
HTS Code 8504.50.80.00
Type Wirewound
ECCN Code EAR99
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Tolerance ±10%
Size / Dimension 0.098Lx0.079W 2.50mmx2.00mm
Series FC
Published 2002
Packaging Tape & Reel (TR)
Operating Temperature -20°C~85°C

Physical

Number of Pins 1008
Package / Case 1008 (2520 Metric)
Mounting Type Surface Mount
Mount Surface Mount
