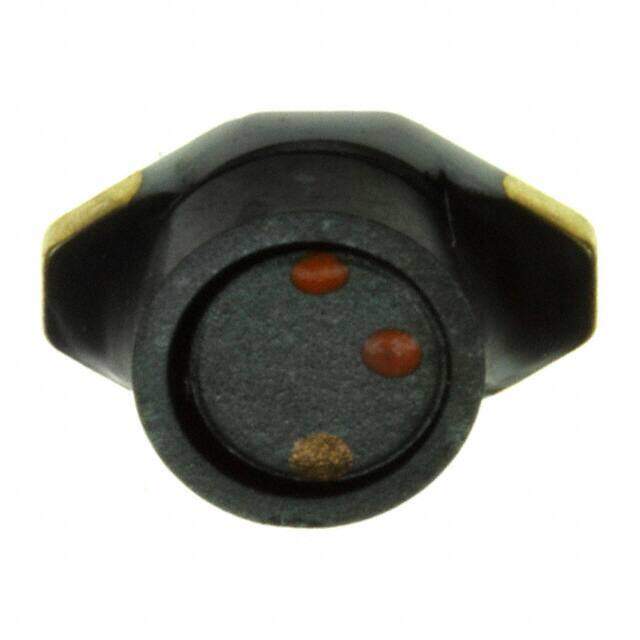

74451033
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-PD3 Nonstandard 0.500Lx0.406W 12.70mmx10.30mm 3.3muH
PDF
/
Buying Options
Total Price: USD $1.77
Unit Price: USD $1.767614
≥1 USD $1.767614
≥10 USD $1.66756
≥100 USD $1.573169
≥500 USD $1.484121
≥1000 USD $1.400116
Inventory: 953
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Material - Core Ferrite
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series WE-PD3
Size / Dimension 0.500Lx0.406W 12.70mmx10.30mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Wirewound
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 1.6A
Shielding Shielded
Depth 4.45mm
Current Rating 1.6A
Inductance 3.3μH
Test Frequency 100kHz
DC Resistance (DCR) 55mOhm Max
Max DC Current 1.6A
Frequency - Self Resonant 60MHz
Inductance Frequency - Test 100kHz
Current - Saturation 770mA
Dimensions
Height 2.92mm
Height Seated (Max) 0.118 3.00mm
Length 12.7mm
Width 10.3124mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
