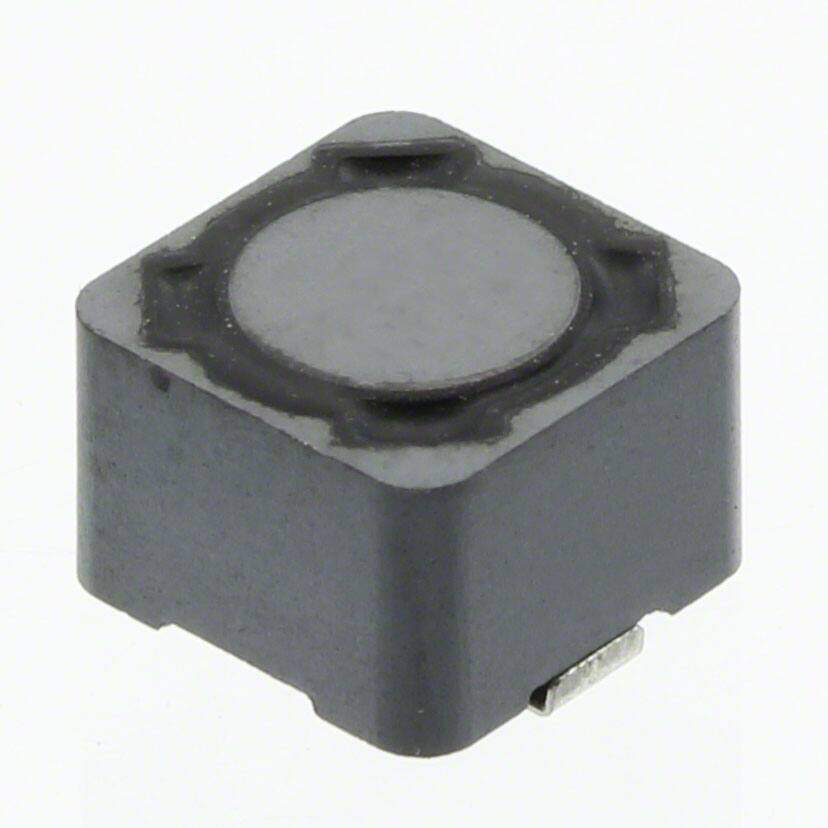

PA4302.332NLT image
Favorite
PA4302.332NLT image
Favorite

PA4302.332NLT

Pulse Electronics Power
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description PA4302.XXXNLT Nonstandard 0.295Lx0.295W 7.50mmx7.50mm 3.3muH
PDF
/
Inventory: 9744
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 11 Weeks

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape WRAPAROUND
Material - Core Ferrite
Shape/Size Description RECTANGULAR PACKAGE

Technical

Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series PA4302.XXXNLT
Size / Dimension 0.295Lx0.295W 7.50mmx7.50mm
Tolerance ±30%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Type Wirewound
HTS Code 8504.50.80.00
Shielding YES
Number of Functions 1
Reach Compliance Code unknown
Current Rating 5.6A
Inductance 3.3μH
Test Frequency 100kHz
DC Resistance (DCR) 22.8mOhm Max
Max DC Current 5.6A
Terminal Placement DUAL ENDED
Case/Size Code 3030

Dimensions

Height Seated (Max) 0.220 5.60mm

Compliance

RoHS Status RoHS Compliant
