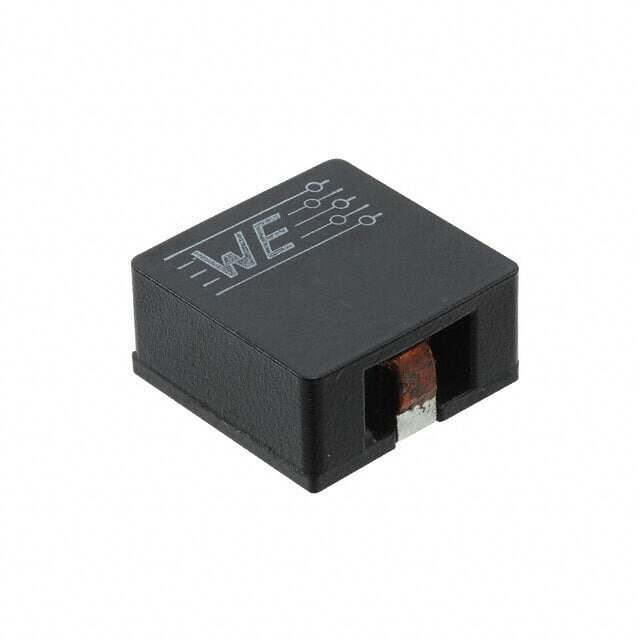

74435584700
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-HCI Nonstandard 0.886Lx0.866W 22.50mmx22.00mm 47muH
PDF
/
Buying Options
Total Price: USD $54.7
Unit Price: USD $54.6991
≥1 USD $54.6991
≥10 USD $44.8818
≥100 USD $43.47865
≥500 USD $42.07645
≥1000 USD $40.67425
Inventory: 1140
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package 2212
Material - Core Manganese Zinc Ferrite (MnZn)
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series WE-HCI
Size / Dimension 0.886Lx0.866W 22.50mmx22.00mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Type Wirewound
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 9A
Shielding Shielded
Depth 22.5mm
Current Rating 9A
Inductance 47μH
Test Frequency 100kHz
DC Resistance (DCR) 19.2mOhm
Max DC Current 9A
Frequency - Self Resonant 6.1MHz
Inductance Frequency - Test 100kHz
Current - Saturation 12A
Inductance Tolerance 20%
RMS Current (Irms) 9A
Series Resistance 19.2Ohm
Dimensions
Height 12mm
Height Seated (Max) 0.488 12.40mm
Length 22.5mm
Width 22mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Ratings AEC-Q200
