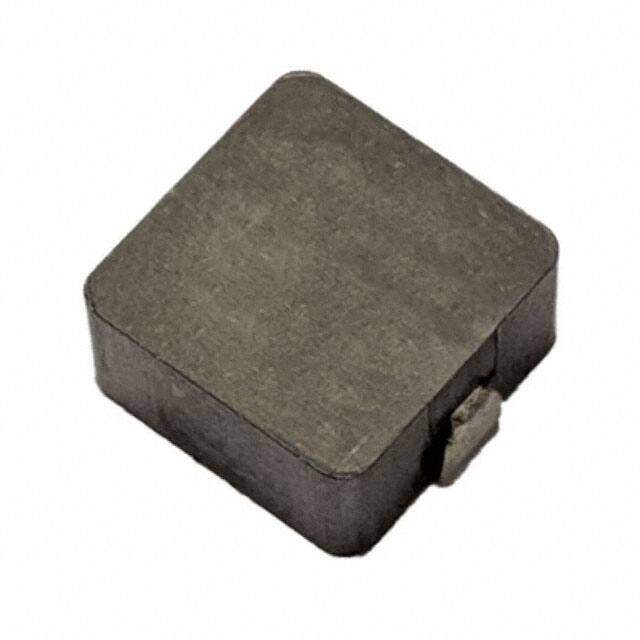

HCM1A1105V2-470-R
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
IND POWER 47.0UH 3.0A 2 PAD SMT
PDF
/
Buying Options
Total Price: USD $1.69
Unit Price: USD $1.6896
≥1 USD $1.6896
≥10 USD $1.4388
≥100 USD $1.326336
≥500 USD $1.185184
≥1000 USD $0.987624
≥3000 USD $0.959376
Inventory: 484
Minimum: 1
-
+
Technical Details
Compliance
Ratings AEC-Q200
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.197 5.00mm
Technical
Current - Saturation 3A
Inductance Frequency - Test 100kHz
Frequency - Self Resonant 3MHz
DC Resistance (DCR) 117mOhm Max
Inductance 47μH
Shielding Shielded
Current Rating (Amps) 3A
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.425Lx0.394W 10.80mmx10.00mm
Series HCM1AV2
Packaging Tape & Reel (TR)
Operating Temperature -55°C~155°C
Physical
Material - Core Iron Powder
Package / Case Nonstandard
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 13 Weeks
