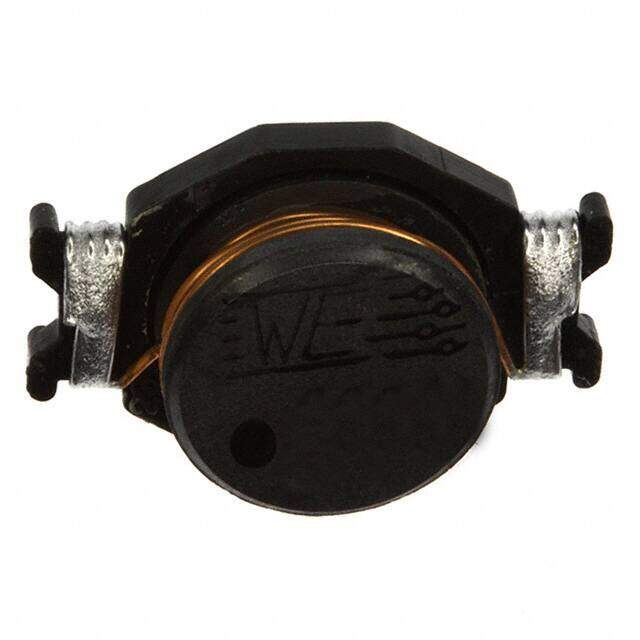

74457147
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
FIXED IND 47UH 2.8A 109 MOHM SMD
PDF
/
Buying Options
Total Price: USD $17.99
Unit Price: USD $17.99015
≥1 USD $17.99015
≥10 USD $14.7611
≥100 USD $14.30035
≥500 USD $13.83865
≥1000 USD $13.3779
Inventory: 1260
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.307 7.80mm
Technical
Inductance Tolerance 10%
Current - Saturation 5A
Inductance Frequency - Test 100kHz
Frequency - Self Resonant 9.2MHz
DC Resistance (DCR) 109mOhm Max
Inductance 47μH
Shielding Unshielded
Current Rating (Amps) 2.8A
Resistance 91.1mOhm
Type Wirewound
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±10%
Size / Dimension 0.866Lx0.591W 22.00mmx15.00mm
Series WE-PD4
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Material - Core Ferrite
Number of Pins 2
Package / Case Nonstandard
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 16 Weeks
