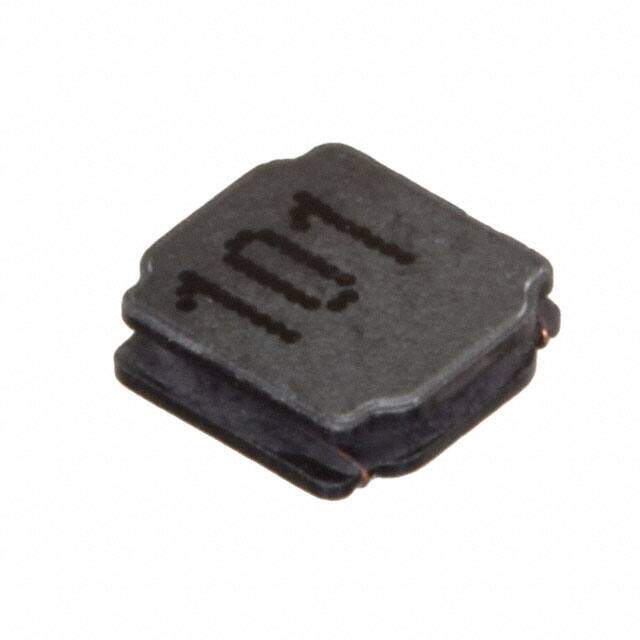

74404041101
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-LQS Nonstandard 0.157Lx0.157W 4.00mmx4.00mm 100muH
PDF
/
Buying Options
Total Price: USD $0.94
Unit Price: USD $0.9405
≥1 USD $0.9405
≥10 USD $0.7714
≥100 USD $0.74765
≥500 USD $0.72295
≥1000 USD $0.6992
Inventory: 1128
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series WE-LQS
Size / Dimension 0.157Lx0.157W 4.00mmx4.00mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Wirewound
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 430mA
Shielding Shielded
Current Rating 430mA
Inductance 100μH
Test Frequency 100kHz
DC Resistance (DCR) 1.697Ohm
Frequency - Self Resonant 10MHz
Inductance Frequency - Test 100kHz
Current - Saturation 350mA
Inductance Tolerance 20%
Dimensions
Height Seated (Max) 0.047 1.20mm
Length 3.9878mm
Width 3.9878mm
Compliance
RoHS Status ROHS3 Compliant
