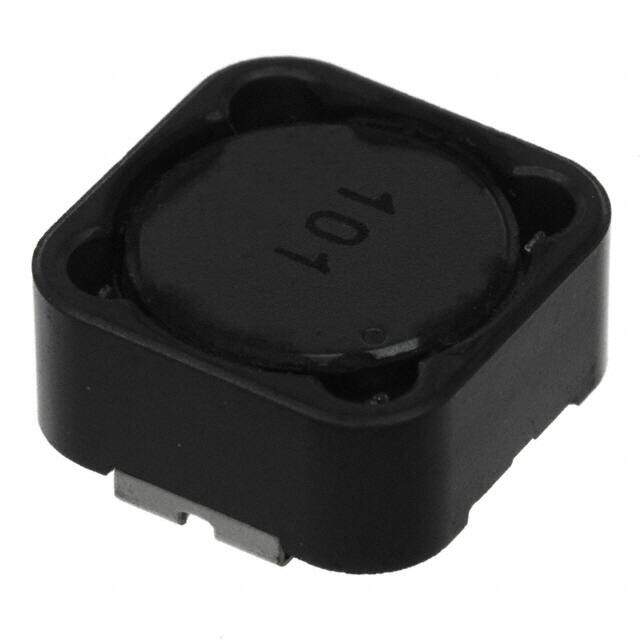

CDRH125/LDNP-101MC
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
CDRH125/LD Nonstandard 0.472Lx0.472W 12.00mmx12.00mm 100muH
PDF
/
Buying Options
Total Price: USD $1.12
Unit Price: USD $1.1176
≥1 USD $1.1176
≥10 USD $0.94424
≥100 USD $0.858176
≥500 USD $0.806608
≥1000 USD $0.669328
≥3000 USD $0.61783
Inventory: 775
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape WRAPAROUND
Shape/Size Description RECTANGULAR PACKAGE
Core Material Ferrite
Technical
Packaging Tape & Reel (TR)
Published 2009
Series CDRH125/LD
Size / Dimension 0.472Lx0.472W 12.00mmx12.00mm
Tolerance ±20%
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Max Operating Temperature 100°C
Min Operating Temperature -40°C
HTS Code 8504.50.80.00
Shielding YES
Number of Functions 1
Depth 12.3mm
Current Rating 1.6A
Inductance 100μH
Test Frequency 100kHz
DC Resistance (DCR) 187mOhm Max
Max DC Current 1.6A
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Inductor Type GENERAL PURPOSE INDUCTOR
Case/Size Code 4848
Dimensions
Height 6mm
Height Seated (Max) 0.236 6.00mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
