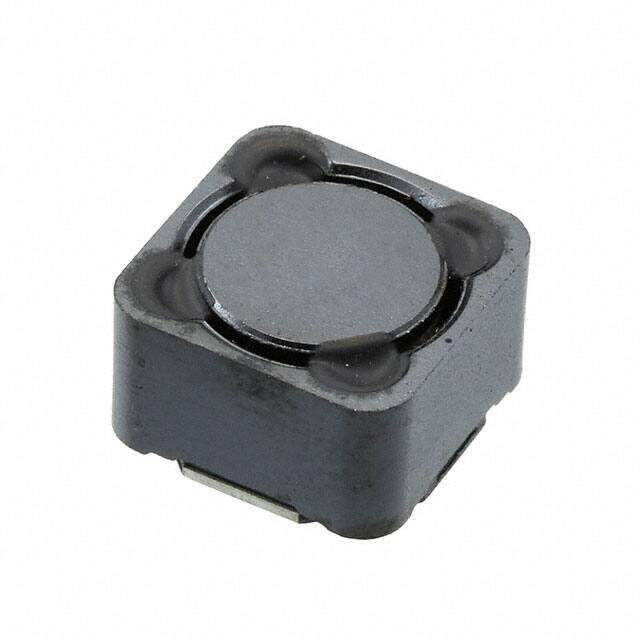

SRR1280A-101M
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
SRR1280A Nonstandard 0.492Lx0.492W 12.50mmx12.50mm 100muH
PDF
/
Buying Options
Total Price: USD $1.21
Unit Price: USD $1.2056
≥1 USD $1.2056
≥10 USD $1.02168
≥100 USD $0.928928
≥500 USD $0.873312
≥1000 USD $0.724592
Inventory: 1162
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Material - Core Ferrite
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Published 2011
Series SRR1280A
Size / Dimension 0.492Lx0.492W 12.50mmx12.50mm
Tolerance ±20%
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
ECCN Code EAR99
Terminal Finish Tin (Sn)
HTS Code 8504.50.80.00
Shielding Shielded
Depth 12.8mm
Current Rating 2.1A
Military Standard Not
Inductance 100μH
Test Frequency 1kHz
DC Resistance (DCR) 150mOhm Max
Max DC Current 2A
Frequency - Self Resonant 4.5MHz
Q @ Freq 18 @ 796kHz
Inductor Type GENERAL PURPOSE INDUCTOR
Q Factor 18
Inductance Tolerance 20%
RMS Current (Irms) 2.1A
Dimensions
Height 7.5mm
Height Seated (Max) 0.315 8.00mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Ratings AEC-Q200
