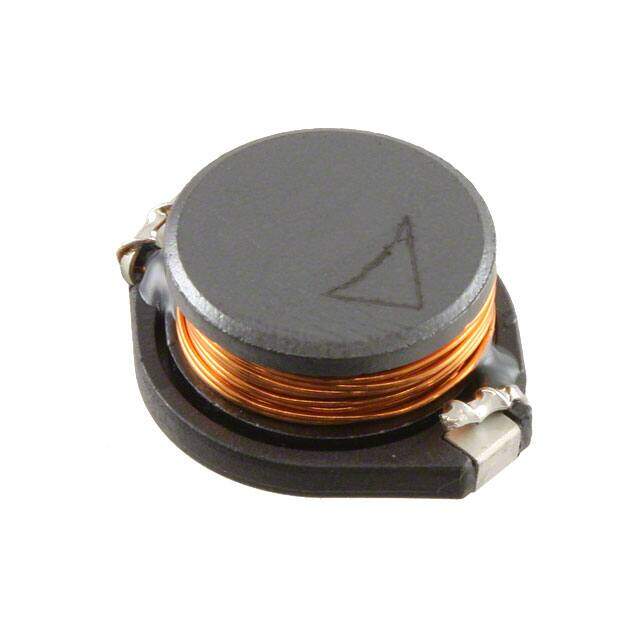

B82479A1154M000
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
Fixed Inductors 150uH 2.6A 20 % 18.54x15.24mm SMD
PDF
/
Buying Options
Total Price: USD $1.43
Unit Price: USD $1.4344
≥1 USD $1.4344
≥10 USD $1.21704
≥100 USD $1.106688
≥500 USD $1.04016
≥1000 USD $0.863104
Inventory: 108
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.280 7.11mm
Technical
Current - Saturation 2.6A
Inductance Frequency - Test 100kHz
DC Resistance (DCR) 250mOhm Max
Inductance 150μH
Shielding Unshielded
Current Rating (Amps) 1.5A
Type Wirewound
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.730Lx0.600W 18.54mmx15.24mm
Series B82479A1
Packaging Tape & Reel (TR)
Operating Temperature -55°C~150°C
Physical
Material - Core Ferrite
Package / Case Nonstandard
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 14 Weeks

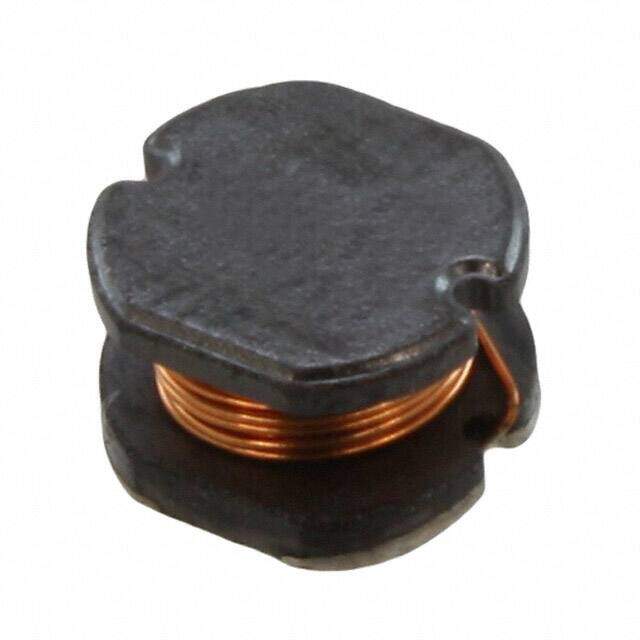

Alternative Model
