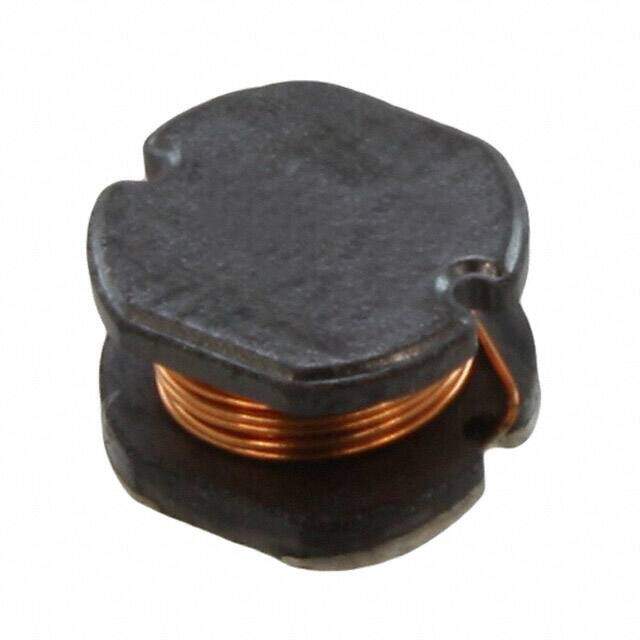

744775215
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-PD2 Nonstandard 0.307Lx0.276W 7.80mmx7.00mm 150muH
PDF
/
Buying Options
Total Price: USD $1.98
Unit Price: USD $1.98
≥1 USD $1.98
≥10 USD $1.76528
≥100 USD $1.63856
≥500 USD $1.57608
≥1000 USD $1.51272
Inventory: 579
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Number of Pins 2
Material - Core Ferrite
Technical
Operating Temperature -40°C~125°C
Packaging Cut Tape (CT)
Series WE-PD2
Size / Dimension 0.307Lx0.276W 7.80mmx7.00mm
Tolerance ±10%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Type Wirewound
Resistance 640mOhm
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 600mA
Shielding Unshielded
Current Rating 600mA
Inductance 150μH
Test Frequency 10kHz
DC Resistance (DCR) 640mOhm Max
Max DC Current 600mA
Frequency - Self Resonant 6.2MHz
Inductance Frequency - Test 10kHz
Current - Saturation 710mA
Inductance Tolerance 10%
RMS Current (Irms) 600mA
Dimensions
Height 5mm
Height Seated (Max) 0.217 5.50mm
Length 7mm
Width 7.8mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
