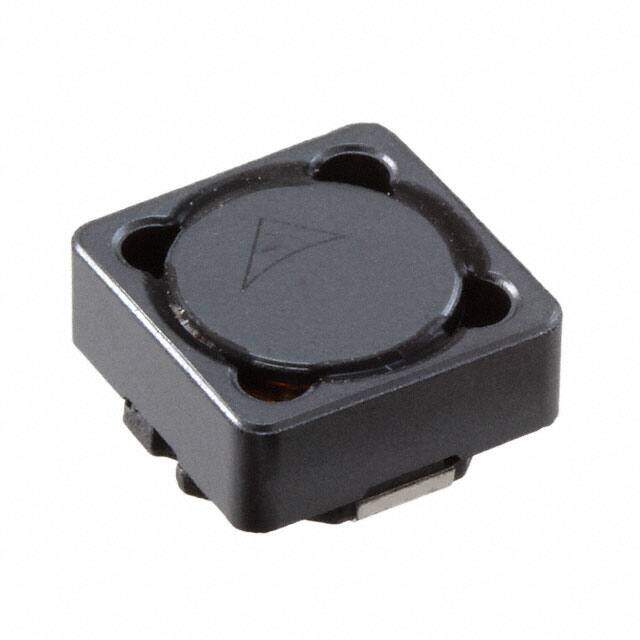

B82464P4154M000
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
Inductor Power Shielded Wirewound 150uH 20% 100KHz Ferrite 850mA 320mOhm DCR Automotive Blister T/R
PDF
/
Buying Options
Total Price: USD $2.29
Unit Price: USD $2.288
≥1 USD $2.288
≥10 USD $1.94568
≥100 USD $1.793088
≥500 USD $1.602304
≥1000 USD $1.335312
≥3000 USD $1.297155
Inventory: 723
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mounting Type Surface Mount
Package / Case Nonstandard
Material - Core Ferrite
Technical
Operating Temperature -55°C~150°C
Packaging Tape & Reel (TR)
Series B82464P4
Size / Dimension 0.409Lx0.409W 10.40mmx10.40mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Wirewound
Current Rating (Amps) 850mA
Shielding Shielded
Inductance 150μH
DC Resistance (DCR) 320mOhm Max
Inductance Frequency - Test 100kHz
Current - Saturation 900mA
Dimensions
Height Seated (Max) 0.189 4.80mm
Compliance
RoHS Status ROHS3 Compliant
Ratings AEC-Q200
