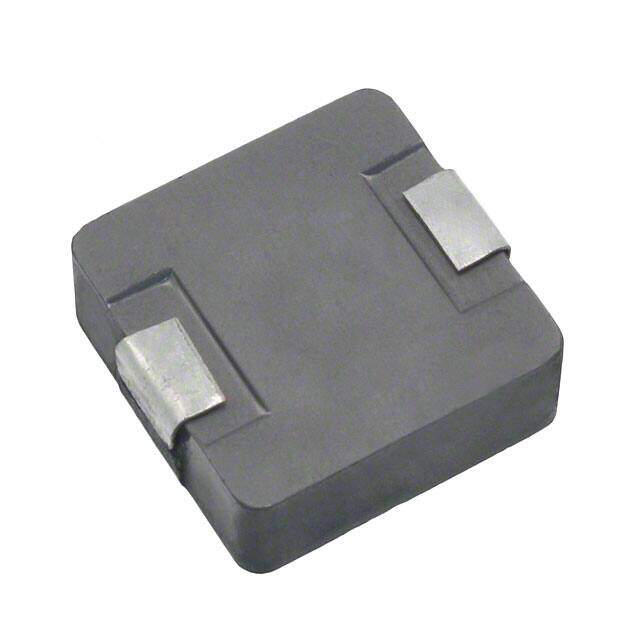

PCMC133E-2R2MF

Susumu
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description PCMC Nonstandard 0.530Lx0.496W 13.45mmx12.60mm 2.2muH
PDF
/
Inventory: 7311
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape WRAPAROUND
Shape/Size Description RECTANGULAR PACKAGE

Technical

Packaging Tape & Reel (TR)
Published 2008
Series PCMC
Size / Dimension 0.530Lx0.496W 13.45mmx12.60mm
Tolerance ±20%
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
HTS Code 8504.50.80.00
Shielding Unshielded
Number of Functions 1
Current Rating 16A
Inductance 2.2μH
DC Resistance (DCR) 8mOhm Max
Max DC Current 16A
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Inductance Frequency - Test 100kHz
Inductor Type GENERAL PURPOSE INDUCTOR
Current - Saturation 29A
Case/Size Code 5053

Dimensions

Height 3.5mm
Height Seated (Max) 0.130 3.30mm

Compliance

RoHS Status ROHS3 Compliant
