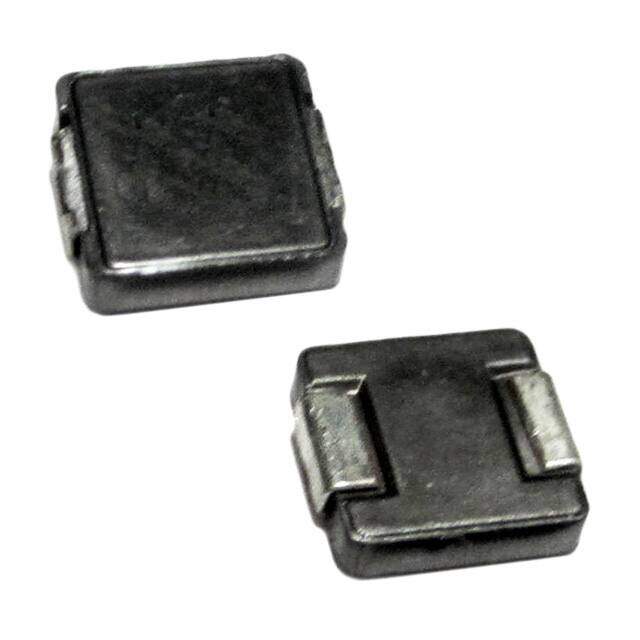

ASPI-7318-2R2M-T
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
ASPI-7318 Nonstandard 0.287Lx0.268W 7.30mmx6.80mm 2.2muH
PDF
/
Buying Options
Total Price: USD $0.75
Unit Price: USD $0.748
≥1 USD $0.748
≥10 USD $0.63272
≥100 USD $0.57552
≥500 USD $0.540848
≥1000 USD $0.4488
≥3000 USD $0.414269
Inventory: 1279
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Material - Core Ferrite
Technical
Operating Temperature -55°C~125°C
Packaging Tape & Reel (TR)
Published 2012
Series ASPI-7318
Size / Dimension 0.287Lx0.268W 7.30mmx6.80mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Type Wirewound
Max Operating Temperature 125°C
Min Operating Temperature -55°C
Composition Wirewound
Current Rating (Amps) 8A
Shielding Shielded
Depth 6.8mm
Current Rating 8A
Inductance 2.2μH
Test Frequency 200kHz
DC Resistance (DCR) 20mOhm Max
Max DC Current 13A
Inductance Frequency - Test 200kHz
Current - Saturation 12A
Dimensions
Height 3mm
Height Seated (Max) 0.118 3.00mm
Length 7.2898mm
Width 6.8072mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
