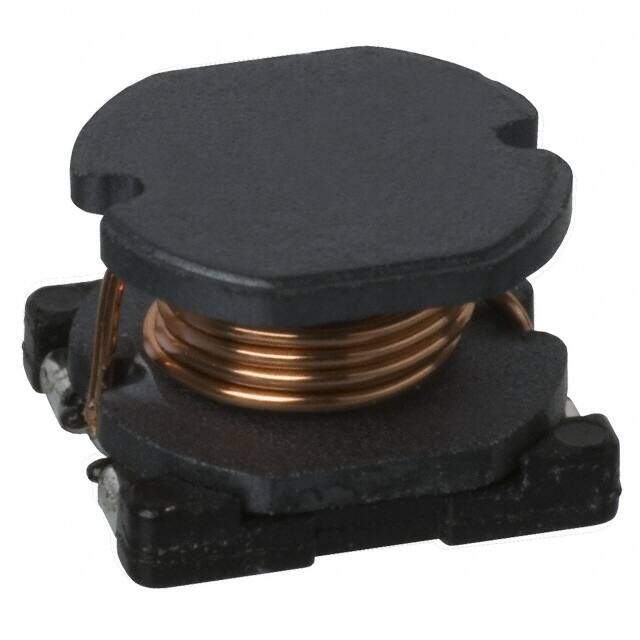

CR75NP-2R2MC
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
CR75 Nonstandard 0.307Lx0.276W 7.80mmx7.00mm 2.2muH
PDF
/
Buying Options
Total Price: USD $0.83
Unit Price: USD $0.8272
≥1 USD $0.8272
≥10 USD $0.6996
≥100 USD $0.636064
≥500 USD $0.597872
≥1000 USD $0.496056
≥3000 USD $0.457952
Inventory: 905
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape WRAPAROUND
Material - Core Ferrite
Shape/Size Description RECTANGULAR PACKAGE
Technical
Operating Temperature -40°C~100°C
Packaging Tape & Reel (TR)
Published 2010
Series CR75
Size / Dimension 0.307Lx0.276W 7.80mmx7.00mm
Tolerance ±20%
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Type Wirewound
Shielding NO
Number of Functions 1
Reach Compliance Code unknown
Current Rating 4.5A
Inductance 2.2μH
Test Frequency 7.96MHz
DC Resistance (DCR) 19.5mOhm Max
Frequency - Self Resonant 36.4MHz
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Inductance Frequency - Test 7.96MHz
Case/Size Code 3229
Dimensions
Height 5.5118mm
Height Seated (Max) 0.217 5.50mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
