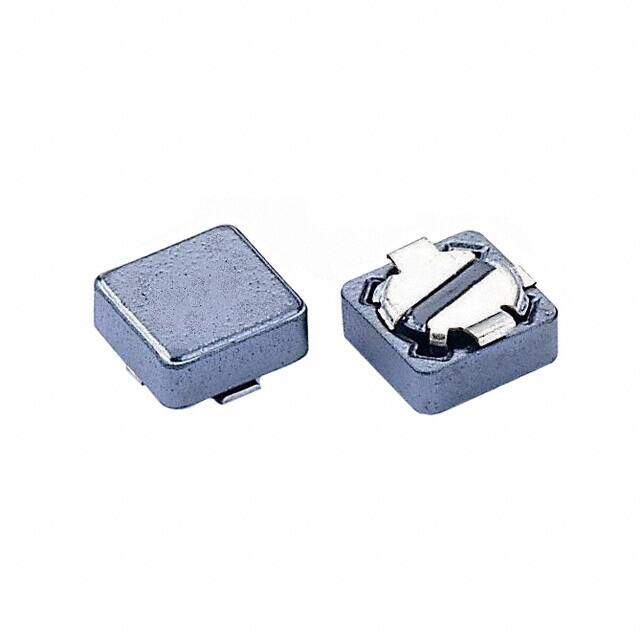

CDRH105RNP-271NC image
Favorite
CDRH105RNP-271NC image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description CDRH105R Nonstandard 0.402Lx0.394W 10.20mmx10.00mm 270muH
PDF
/
Buying Options
Total Price: USD $1.24
Unit Price: USD $1.243663
≥1 USD $1.243663
≥10 USD $1.173263
≥100 USD $1.106846
≥500 USD $1.044204
≥1000 USD $0.98509
Inventory: 1115
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No

Dimensions

Height Seated (Max) 0.201 5.10mm
Height 5.1mm

Technical

Case/Size Code 4039
Current - Saturation 840mA
Inductor Type GENERAL PURPOSE INDUCTOR
Terminal Placement DUAL ENDED
Inductor Application POWER INDUCTOR
Max DC Current 800mA
DC Resistance (DCR) 672mOhm Max
Test Frequency 100kHz
Inductance 270μH
Current Rating 800mA
Depth 10.3mm
Number of Functions 1
Shielding YES
Packing Method TR, 13 Inch
HTS Code 8504.50.80.00
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Tolerance ±30%
Size / Dimension 0.402Lx0.394W 10.20mmx10.00mm
Series CDRH105R
Published 2009
Packaging Tape & Reel (TR)
Operating Temperature -40°C~100°C

Physical

Shape/Size Description RECTANGULAR PACKAGE
Material - Core Ferrite
Terminal Shape WRAPAROUND
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 15 Weeks
