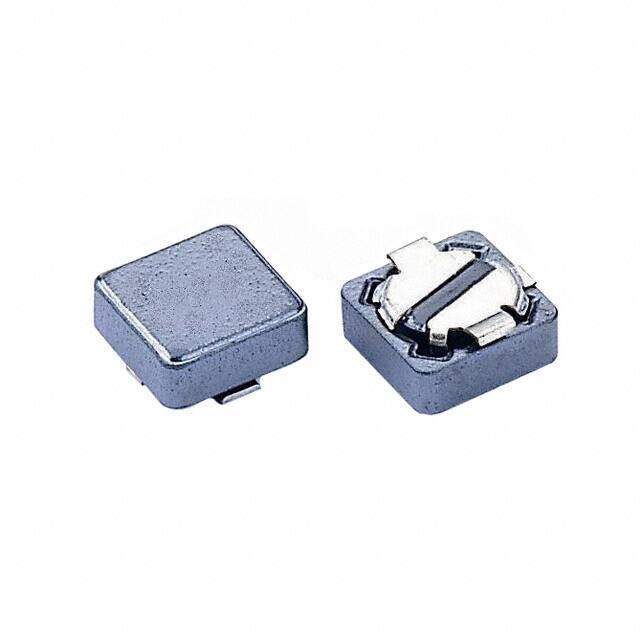

SCPH73-271
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
FIXED IND 270UH 400MA 1.9 OHM
PDF
/
Inventory: 6612
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 7.493mm
Length 7.493mm
Height Seated (Max) 0.142 3.60mm
Height 3.6068mm
Technical
Current - Saturation 280mA
Inductance Frequency - Test 1kHz
DC Resistance (DCR) 1.9Ohm Max
Test Frequency 1kHz
Inductance 270μH
Current Rating 280mA
Shielding Shielded
Current Rating (Amps) 400mA
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.295Lx0.295W 7.50mmx7.50mm
Series SCPH73
Published 2009
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 18 Weeks
