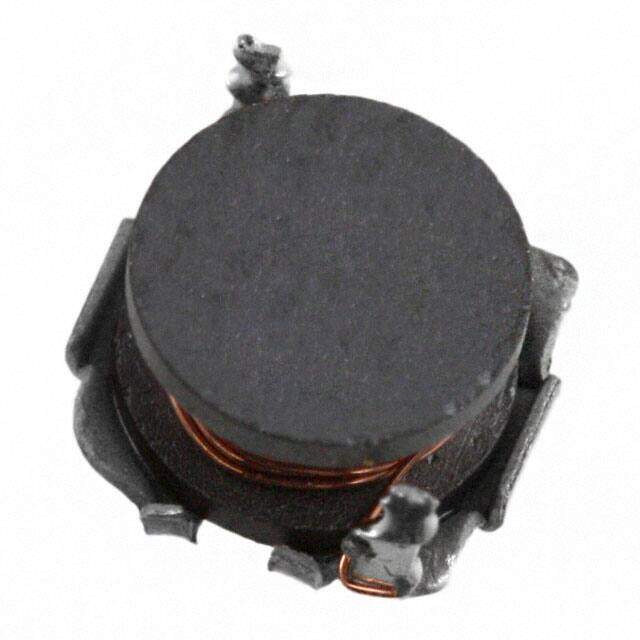

CDH115NP-271KC
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
CDH115 Nonstandard 0.441Lx0.433W 11.20mmx11.00mm 270muH
PDF
/
Inventory: 7794
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape WRAPAROUND
Material - Core Ferrite
Shape/Size Description RECTANGULAR PACKAGE
Technical
Operating Temperature -40°C~100°C
Packaging Tape & Reel (TR)
Published 2006
Series CDH115
Size / Dimension 0.441Lx0.433W 11.20mmx11.00mm
Tolerance ±10%
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Type Wirewound
Shielding NO
Number of Functions 1
Reach Compliance Code unknown
Current Rating 590mA
Reference Standard AEC-Q200
Inductance 270μH
Test Frequency 1kHz
DC Resistance (DCR) 730mOhm Max
Max DC Current 590mA
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Case/Size Code 4343
Dimensions
Height 5.2mm
Height Seated (Max) 0.205 5.20mm
Compliance
RoHS Status ROHS3 Compliant

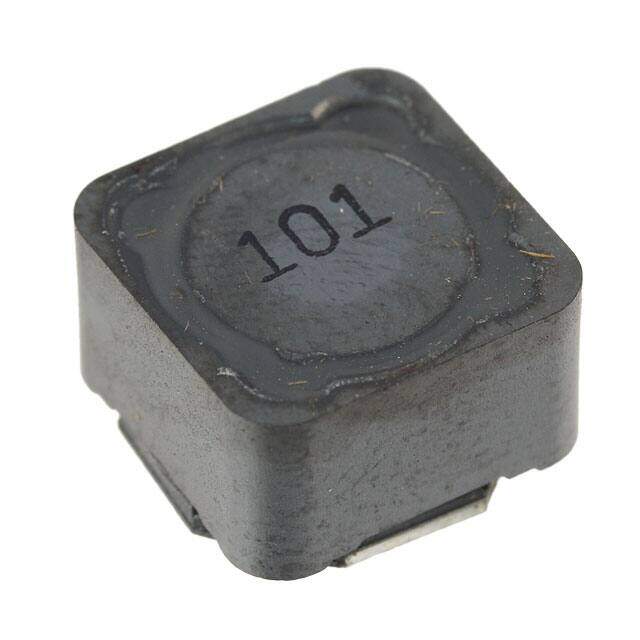

Alternative Model
