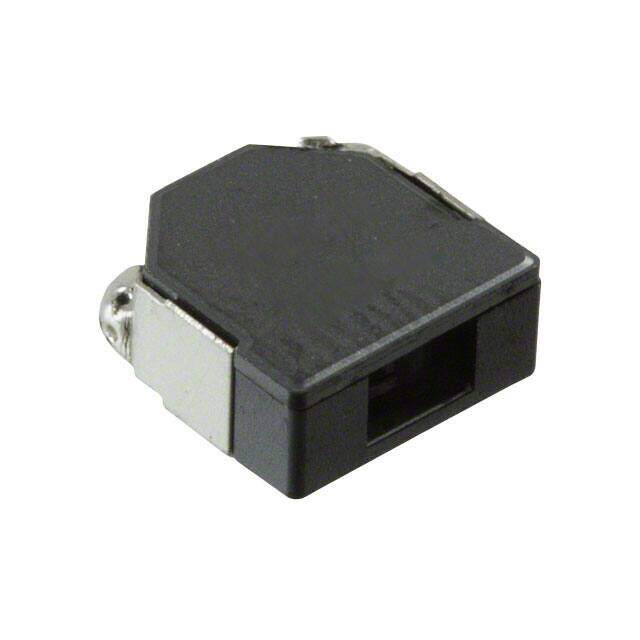

CDEIR6D31FHF-2R2MC
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
CDEIR6D31F Nonstandard 0.287Lx0.268W 7.30mmx6.80mm 2.2muH
PDF
/
Inventory: 4222
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Material - Core Ferrite
Technical
Operating Temperature -40°C~105°C
Packaging Cut Tape (CT)
Published 2011
Series CDEIR6D31F
Size / Dimension 0.287Lx0.268W 7.30mmx6.80mm
Tolerance ±20%
Part Status Discontinued
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Max Operating Temperature 105°C
Min Operating Temperature -40°C
Current Rating (Amps) 6.5A
Shielding Shielded
Current Rating 6.5A
Inductance 2.2μH
Test Frequency 100kHz
DC Resistance (DCR) 12mOhm Max
Max DC Current 6.5A
Inductance Frequency - Test 100kHz
Current - Saturation 6A
Dimensions
Height 3.2mm
Height Seated (Max) 0.126 3.20mm
Length 7.2898mm
Width 7.1mm
Compliance
RoHS Status ROHS3 Compliant
