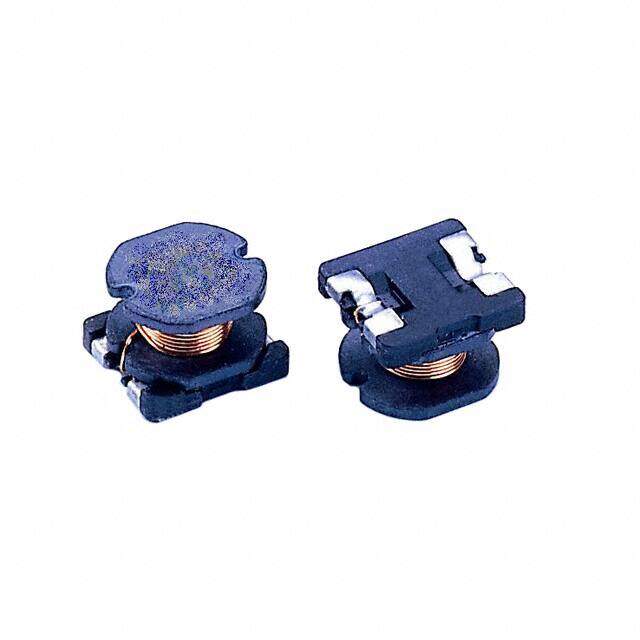

SC75B-101
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
ROHS3Compliant Wirewound Active 2009 fixed air core inductor -40C~125C 1kHz 430mOhm Max 100muH
PDF
/
Inventory: 4553
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 7.2898mm
Length 8.1026mm
Height Seated (Max) 0.217 5.50mm
Height 5.5118mm
Technical
Current - Saturation 720mA
Inductance Frequency - Test 1kHz
DC Resistance (DCR) 430mOhm Max
Test Frequency 1kHz
Inductance 100μH
Current Rating 720mA
Shielding Unshielded
Current Rating (Amps) 900mA
Type Wirewound
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.319Lx0.287W 8.10mmx7.30mm
Series SC75B
Published 2009
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 18 Weeks
