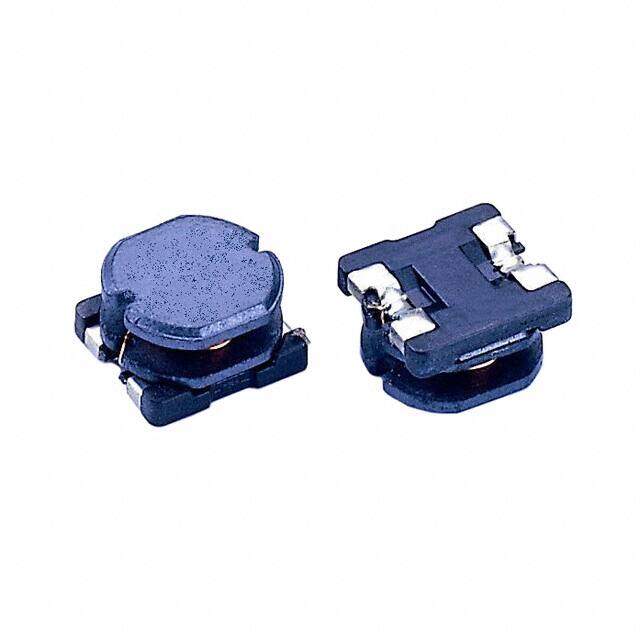

SC73B-151 image
Favorite
SC73B-151 image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description ROHS3Compliant Wirewound Active 2009 Fixed Inductor -40C~125C 1kHz 750mOhm Max 150muH
PDF
/
Inventory: 5403
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Dimensions

Width 7.2898mm
Length 8.1026mm
Height Seated (Max) 0.177 4.50mm
Height 4.4958mm

Technical

Current - Saturation 400mA
Inductance Frequency - Test 1kHz
DC Resistance (DCR) 750mOhm Max
Test Frequency 1kHz
Inductance 150μH
Current Rating 400mA
Shielding Unshielded
Current Rating (Amps) 720mA
Type Wirewound
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.319Lx0.287W 8.10mmx7.30mm
Series SC73B
Published 2009
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C

Physical

Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 18 Weeks
