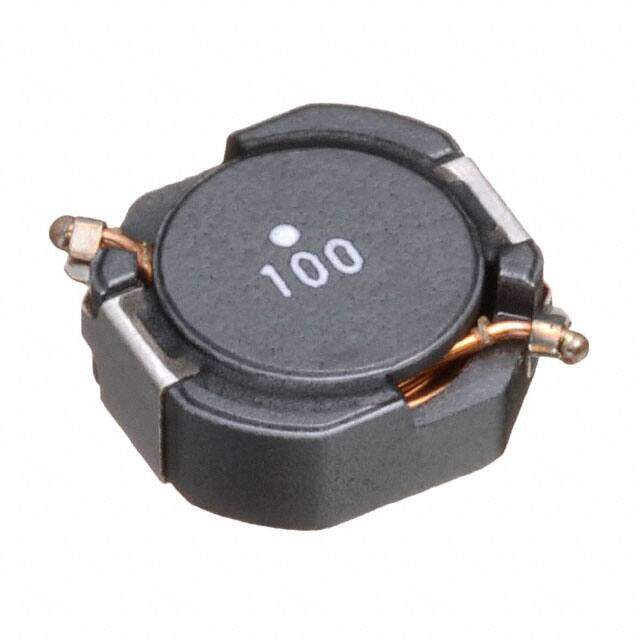

CLF10040T-151M-D
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
CLF-D Nonstandard 0.394Lx0.382W 10.00mmx9.70mm 150muH
PDF
/
Buying Options
Total Price: USD $1.39
Unit Price: USD $1.3904
≥1 USD $1.3904
≥10 USD $1.17656
≥100 USD $1.069376
≥500 USD $1.005312
≥1000 USD $0.83424
≥3000 USD $0.77007
Inventory: 1586
Minimum: 1
-
+
Technical Details
Compliance
Ratings AEC-Q200
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Height Seated (Max) 0.161 4.10mm
Height 3.8mm
Technical
Self Resonant Frequency 100kHz
RMS Current (Irms) 800mA
Inductance Tolerance 20%
Max DC Current 1A
DC Resistance (DCR) 456mOhm Max
Test Frequency 100kHz
Inductance 150μH
Current Rating 800mA
Depth 9.7mm
Shielding Shielded
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.394Lx0.382W 10.00mmx9.70mm
Series CLF-D
Published 2008
Packaging Cut Tape (CT)
Operating Temperature -40°C~150°C
Physical
Material - Core Ferrite
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 25 Weeks
