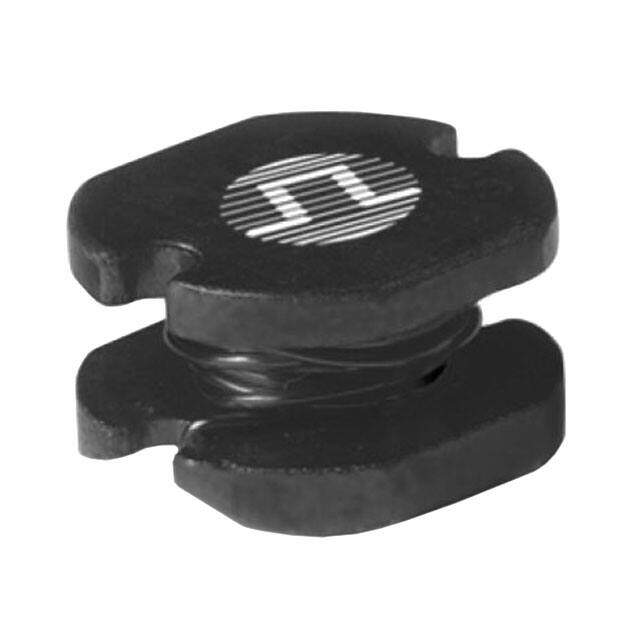

PG0015.474NLT image
Favorite
PG0015.474NLT image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description RoHS Compliant Wirewound Active ONE SURFACE Fixed Inductor -40C~125C 2.6MHz 1.48Ohm Max 470muH
PDF
/
Inventory: 7441
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status RoHS Compliant

Dimensions

Height Seated (Max) 0.219 5.55mm

Technical

Rated Current-Max 0.42A
Terminal Placement DUAL ENDED
Inductor Application POWER INDUCTOR
Frequency - Self Resonant 2.6MHz
DC Resistance (DCR) 1.48Ohm Max
Inductance 470μH
Current Rating 420mA
Number of Functions 1
Shielding NO
HTS Code 8504.50.80.00
Terminal Finish Matte Tin (Sn)
Type Wirewound
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Tolerance ±20%
Size / Dimension 0.400Lx0.360W 10.15mmx9.15mm
Series PG0015NL
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C

Physical

Shape/Size Description CYLINDRICAL PACKAGE
Terminal Shape ONE SURFACE
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
