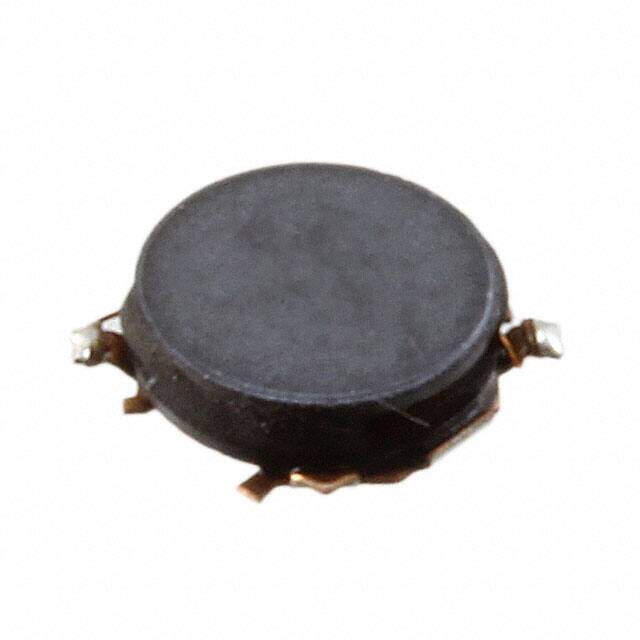

ELL-SFG471MA image
Favorite
ELL-SFG471MA image
Favorite
RoHS
/
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description Ind Power Choke Shielded Wirewound 470uH 20% 100KHz 110mA 1515 Embossed Carrier T/R
PDF
/
Inventory: 2607
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status RoHS Compliant
Radiation Hardening No

Dimensions

Height Seated (Max) 0.047 1.20mm
Height 1.2mm

Technical

Current - Saturation 100mA
Max DC Current 100mA
DC Resistance (DCR) 12.3Ohm
Test Frequency 100kHz
Inductance 470μH
Current Rating 110mA
Depth 4.2mm
Shielding Shielded
HTS Code 8504.50.80.00
Type Wirewound
ECCN Code EAR99
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Tolerance ±20%
Size / Dimension 0.157Lx0.157W 4.00mmx4.00mm
Series G
Packaging Cut Tape (CT)

Physical

Weight 64.013223mg
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
