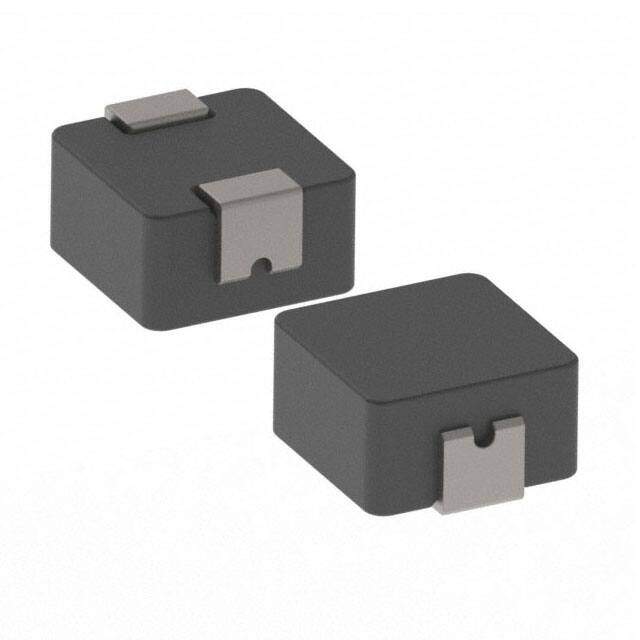

PA4340.153ANLT
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
PA4340.XXXANLT Nonstandard 0.224Lx0.205W 5.70mmx5.20mm 15muH
PDF
/
Buying Options
Total Price: USD $0.82
Unit Price: USD $0.8184
≥1 USD $0.8184
≥10 USD $0.69256
≥100 USD $0.63008
≥500 USD $0.592064
≥1000 USD $0.491392
≥3000 USD $0.453552
Inventory: 7966
Minimum: 1
-
+
Technical Details
Compliance
Ratings AEC-Q200
RoHS Status RoHS Compliant
Dimensions
Height Seated (Max) 0.118 3.00mm
Technical
Current - Saturation 2.2A
Inductance Frequency - Test 100kHz
DC Resistance (DCR) 170mOhm Max
Inductance 15μH
Shielding Shielded
Current Rating (Amps) 2.9A
Type Molded
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.224Lx0.205W 5.70mmx5.20mm
Series PA4340.XXXANLT
Packaging Tape & Reel (TR)
Operating Temperature -55°C~155°C
Physical
Package / Case Nonstandard
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 9 Weeks
