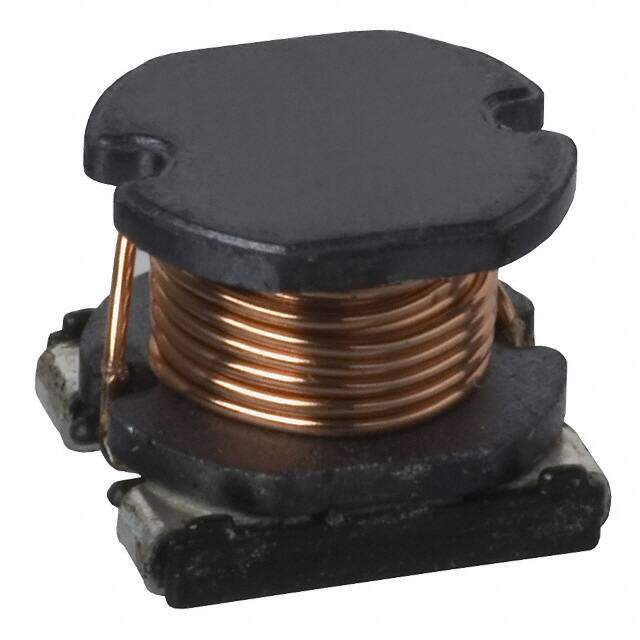

CR54NP-150MC
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
CR54 Nonstandard 0.228Lx0.209W 5.80mmx5.30mm 15muH
PDF
/
Buying Options
Total Price: USD $0.7
Unit Price: USD $0.704
≥1 USD $0.704
≥10 USD $0.59312
≥100 USD $0.538912
≥500 USD $0.506704
≥1000 USD $0.420464
≥3000 USD $0.38808
Inventory: 1124
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Height Seated (Max) 0.191 4.85mm
Height 4.85mm
Technical
DC Current 1.3A
Case/Size Code 2422
Terminal Placement DUAL ENDED
Inductor Application POWER INDUCTOR
Frequency - Self Resonant 25.9MHz
Max DC Current 1.3A
DC Resistance (DCR) 140mOhm Max
Test Frequency 2.52MHz
Inductance 15μH
Military Standard Not
Current Rating 1.3A
Depth 5.6mm
Number of Functions 1
Shielding NO
HTS Code 8504.50.80.00
Type Wirewound
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Tolerance ±20%
Size / Dimension 0.228Lx0.209W 5.80mmx5.30mm
Series CR54
Published 2011
Packaging Tape & Reel (TR)
Operating Temperature -40°C~100°C
Physical
Shape/Size Description RECTANGULAR PACKAGE
Material - Core Ferrite
Terminal Shape WRAPAROUND
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 10 Weeks
